AQUAPURA INVERTER X30HT | X60HT | X75HT

homepage / Products / Climatization / AQUAPURA INVERTER X30HT | X60HT | X75HT

Aerothermal heat pump, designed for air water heating and central heating for residential and industrial use.
Latest generation heat pump with new natural R290 refrigerant.
Temperature up to 75oC, with maximum efficiency.
The Aquapura Inverter X30HT , X60HT AND X75HT has a DHW function, 100% hydraulic installation, ultra compact and innovative design.
The Aquapura Inverter X30HT , X60HT AND X75HT Heat Pump consists of an outdoor unit, in centaral heating versions, and an indoor unit, the water heater for the DHW version.

Contact us
Ask us for a quote

AQUAPURA INVERTER X30HT | X60HT | X75HT

KEY FEATURES

  • Compact design
  • Touch control
  • Simple installation “Plug & Use”
  • Control via Smart APP
  • RS485/ModBus centralized control
  • Configuring operating periods
  • Low operating noise
  • Operation at outdoor temperatures down to -25°C

AQUAPURA X30HT

  • DHW production up to 75°C
  • Integrated water pump
  • Up to 120 kw of capacity connecting 4 unitsof 30 kw/each

AQUAPURA X60HT

  • DHW production up to 75°C
  • Up to 240 kw of capacity connecting 4 units of 60 kw/each

AQUAPURA X75HT

  • DHW production up to 75°C
  • Up to 300 kW capacity, connecting 4 units of 75 kW each

FUNCTIONING PRINCIPLE

There is a refrigerant fluid that is pumped to an external heat exchanger (evaporator). At this point, the fluid absorbs energy from the environment thanks to the temperature difference present outside. During this process, the fluid changes state and turns into vapor. The gaseous fluid is then drawn into the mechanical part of the system—the compressor. In the compressor, the fluid is compressed, which increases its pressure and, consequently, its temperature. Next, the fluid moves to a second internal heat exchanger (condenser), where it transfers the accumulated heat to the home’s heating system. As it naturally cools, the fluid returns to its liquid state. Finally, the fluid’s pressure is reduced through a throttling process in the expansion valve, and the cycle begins again.

INVERTER HEAT PUMPS STAND OUT FOR THEIR HIGH PERFORMANCE

Heat pumps are designed for both heating and cooling, as well as domestic hot water heating. These solutions stand out for their high energy efficiency, enabling them to achieve an energy rating of up to A+++ for heating. They are also notable for their ability to integrate with other heating systems and for their ease of installation.

HIGH LEVEL OF EFFICIENCY DOMESTIC HOT WATER PRODUCTION

The heat from the environment is indirect solar energy, stored in water, air, and soil. The heat pump extracts heat precisely from these sources to later use it for heating and cooling your home. Air/Water heat pumps with high-energy-efficiency INVERTER technology are a modern, efficient, and clean solution that ensures the comfort of your home while always respecting the environment.

It is an intelligent way to use natural resources to improve your quality of life. By adopting one of these solutions, you are making a serious commitment to reducing harmful emissions into our atmosphere, thereby contributing to the natural balance of the planet. Air/Water heat pumps with INVERTER technology have been developed to meet both domestic and industrial needs, for heating and cooling solutions as well as domestic hot water (DHW) production.

CONSUMPTION OF PRIMARY ENERGY

Compared to an oil boiler, gas boiler, or electric heater, a heat pump provides a better quality of life with low operating costs, thanks to its high efficiency.

DC INVERTER TECHNOLOGY

DC INVERTER technology is different from any other technology existing on the market because it has a compressor with the capacity to vary the operating frequency, meeting the exact needs of climatization comfort at home. This achieves greater savings in energy consumption.

THE LATEST GENERATION OF AIR/WATER HEAT PUMPS

WITH NATURAL REFRIGERANT R290

Use a natural refrigerant with less global warming potential.

It features low noise levels, almost imperceptible just a few meters away when in operation.

The system contains no fluorinated gases, it is 100% hydraulic.

Guaranteed high performance regardless of the use: heating, cooling or production of DHW.

The equipment can reach temperatures up to 75°C making it the ideal solution for replacing boilers.

The A+++ efficiency class gives the equipment one of the highest efficiencies on the market.

The equipment has an ABS polymer-coated exterior designed to provide protection against corrosion.

INVERTER X30HT

INVERTER X60HT | X75HT

TECHNICAL DATAUND.X30HTX60HT
Power supply--380-415V/3N~/50Hz380-415V/3N~/50Hz
Refrigerant--R290R290R290
Refrigerant charge /CO2 equivalentkg / Ton1,8 / 0,00551,5 x 2 / 0,00922,4 x 2 / 0,01472
Heating capacity (min/max)kW9,1 / 35,014,1 / 69,519,2 / 79,2
Cooling capacity (min / max)kW6,1 / 22,59,31 / 48,212,6 / 54,3
Maximum operating currentA203045
Maximum operating powerkW13,119,729,5
Operating temperature limitoC-25 / 43-25 / 43-25 / 43
Moisture resistance--IPX4IPX4IPX4
Heating - Air temperature (DB/WB) 7°C/Water temperature (inlet/outlet) 30°C/35°C
Nominal heating capacitykW28,154,667,1
Nominal power consumptionkW6,112,1814,84
COP--4,614,484,52
Cooling - Air temperature (DB/WB) 35°C/ 24°C; Water temperature (inlet/outlet): 12°C/ 7°C
Nominal cooling capacitykW19,543,252,1
Nominal power consumptionkW5,512,414,8
EERkW3,543,473,52
Technical Specifications
Maximum heating temperatureoC757575
Minimum cooling temperatureoC777
Electric backup heaterUn.Non-integratedNon-integratedNon-integrated
Number of compressorsUn.122
Compressor typology--DC InverterDC InverterDC Inverter
Water pumpUn.IntegratedIntegrated contactorIntegrated contactor
Nominal water flow (tmax. = 7oC)m3/h3,56,98,3
Internal pressure drop of the hydraulic circuitkPa502025
Number of fansUn.212
Hydraulic connections (inlet/outlet)Inch1" 1/41" 1/2DN50
Sound pressure level (1m)dB(A)515356
Sound power level (1m)dB666973
Net weightkg202363624

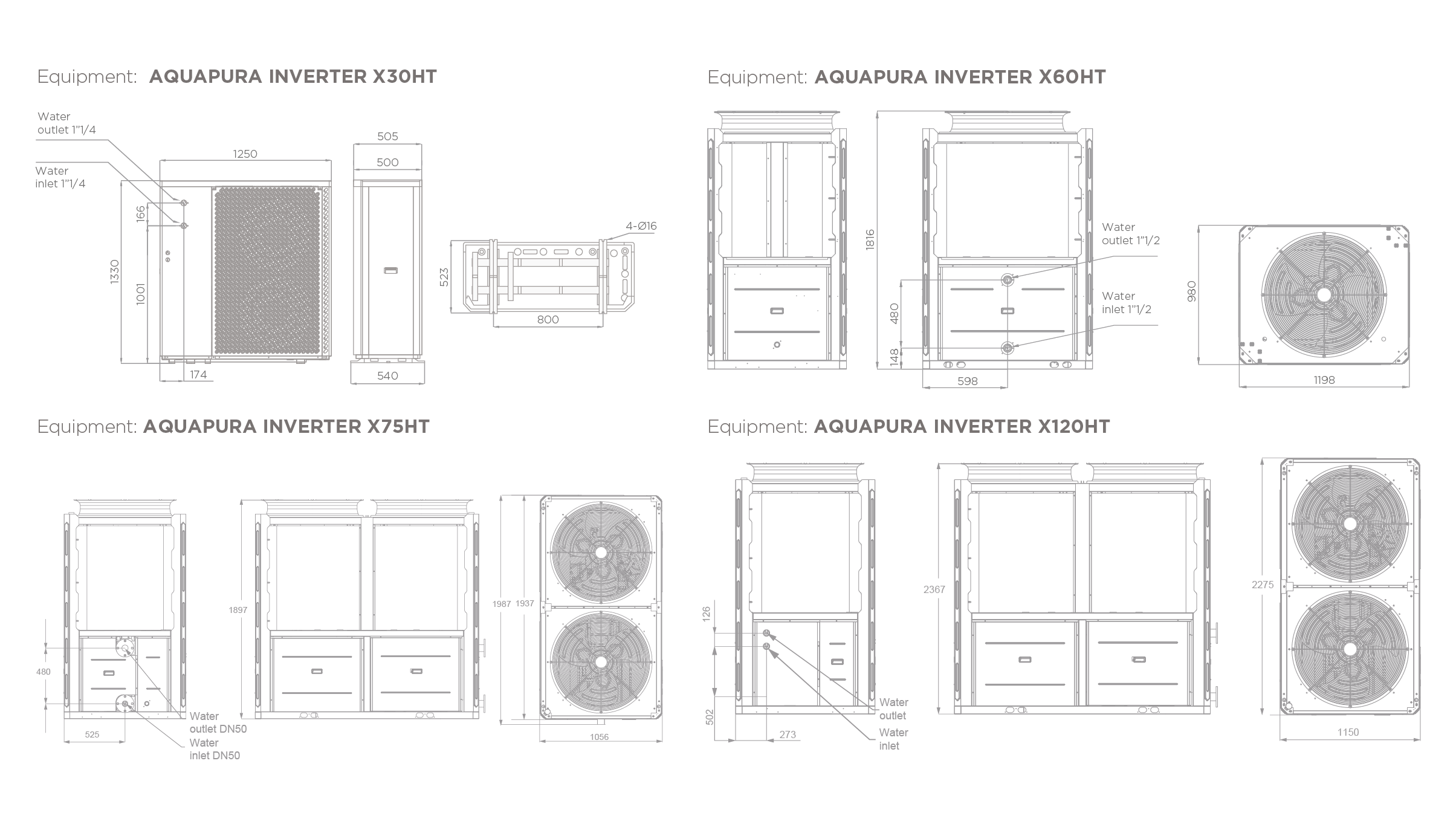

Net dimensions ( A x L x P)mm1330 x 1250 x 5401816 x 1198 x 9801897 x 1987 x 1056
Erp / Performance according to EN 14825 – Average climate (+7ºC)
Energy efficiency class (35°C)--A+++A+++A+++
SCOP/ɳ-- / %4,72/ 1864,59 / 1804,62 / 182
Energy efficiency class (55°C)--A++A++A++
SCOP/ɳ-- / %3,49/ 1363,43 / 1343,71 / 145

catalogs
ENERGIE EST, Lda.
AQUAPURA INVERTER X30HT | X60HT | X75HT
View Online
enAQUAPURA INVERTER X30HT | X60HT | X75HT R1V0 2025 EN
Download


Installation manuals
ENERGIE EST, Lda.
AQUAPURA INVERTER X30HT | X60HT – MANUAL
pt-ptAQUAPURA INVERTER X30HT R0V2 INSTALLATION MANUAL
MANUAL AQUAPURA INVERTER X60HT R2V0
