AQUAPURA MONOBLOC PRO

homepage / Products / Domestic Hot Water (DHW) / AQUAPURA MONOBLOC PRO

Aerothermal Heat Pump.
High efficiency with natural refrigerant R290for domestic hot water production up to 65°C.

Contact us
Ask us for a quote

AQUPURA MONOBLOC
PRO

AN ENVIRONMENTALLY FRIENDLY DOMESTIC HOT WATER SOLUTION

DHW UP TO 650C IN HEATING MODE

FEATURES

  • Portuguese technology and manufacturing;
  • Compact stainless steel storage cylinder with no need for anode, reducing maintenance;
  • Uses eco-friendly refrigerant R290, reducing, CO2 emissions;
  • Low noise operation;

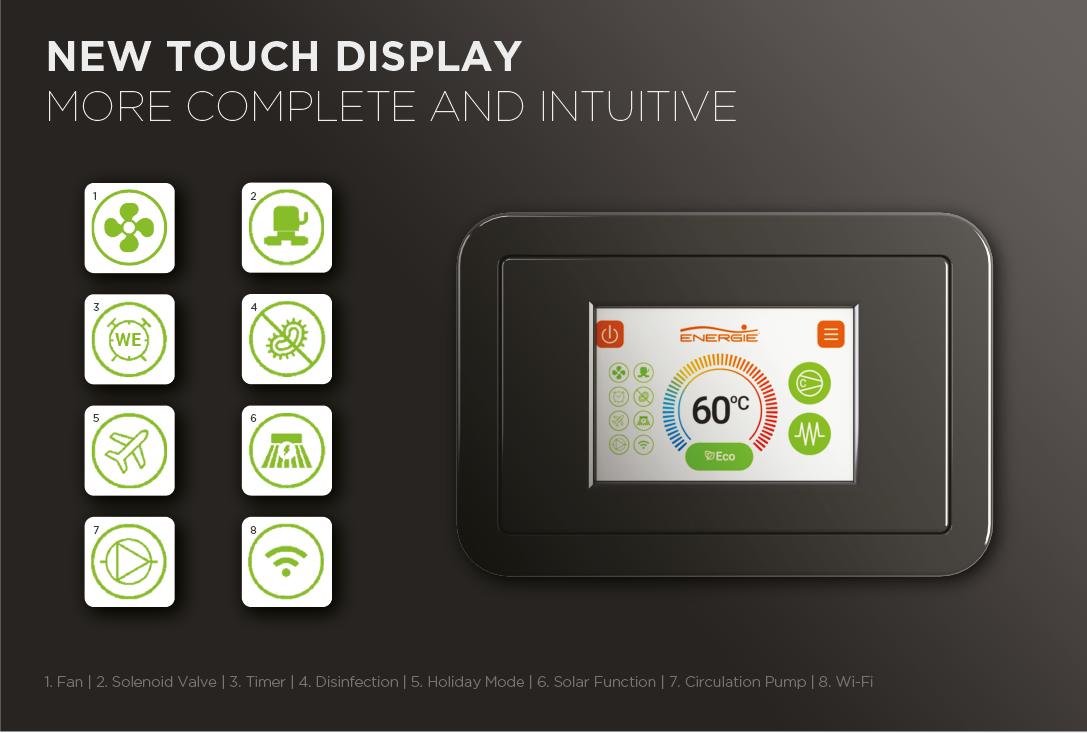

  • User-friendly touchscreen controller with integrated Wi-Fi and Modbus.

NEW GENERATION OF HEAT PUMPS WITH NATURAL REFRIGERANT R290

ENERGIE presents its new series of Heat Pumps with natural refrigerant R290-an innovative solution designed to reduce global warming impact.

A CONSCIOUS CHOICE

R290 is a propane gas with a Global Warming Potential (GWP) of only 3, making it stand out due to its very low contribution to the greenhouse effect, especially when compared with alternative gases used for similar applications. This low GWP means the use of R290 significantly reduces environmental impact, making it an eco-responsible option.

HIGH THERMODYNAMIC PERFORMANCE

R290 refrigerant also delivers superior thermodynamic performance, allowing higher water temperatures to be reached.

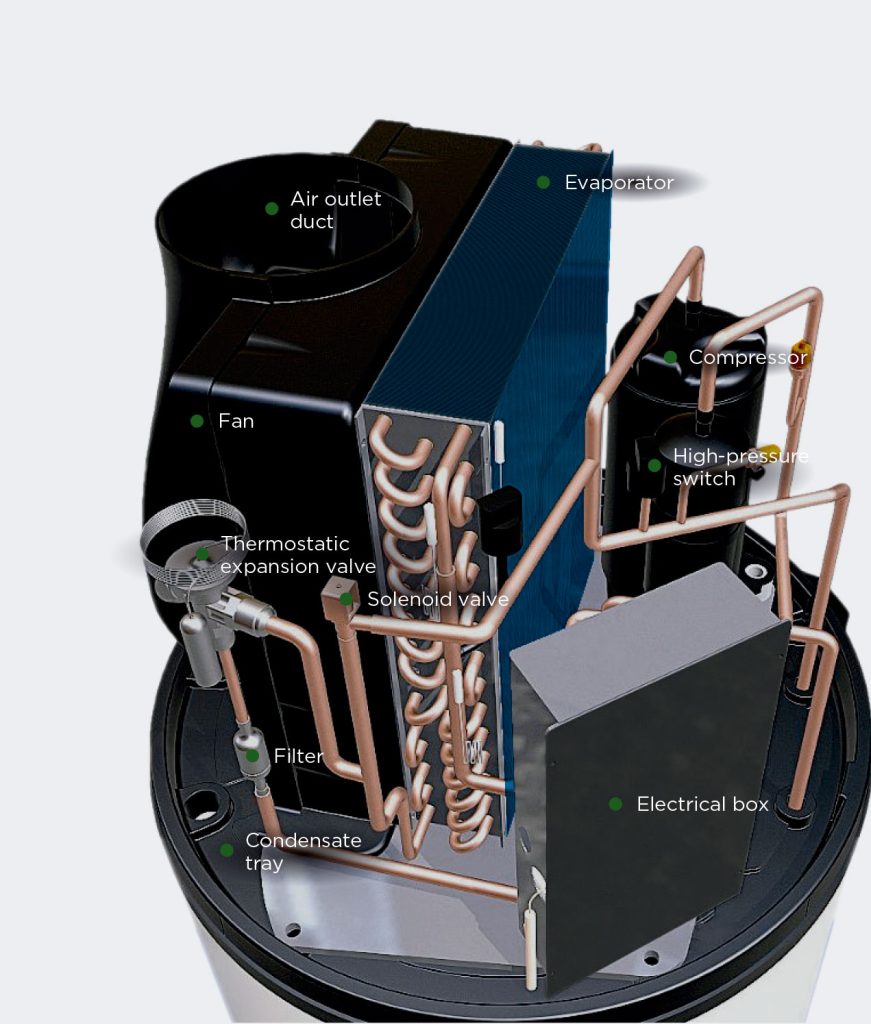

AQUPURA MONOBLOC PRO NEW TOP COVER

EASY ACCESS TO THE THERMODYNAMIC UNIT WITHOUT REMOVING DUCTING

Key features:

  • Made of Expanded Polypropylene (EPP);
  • Reduces sound emissions;
  • Front access to the thermodynamic unit;
  • Integrated slot for the touchscreen display;
  • Three duct connection diameters: ø160, ø190, and ø200;
  • More robust;
  • Sleeker design;

TECHNICAL DATAUNITMONOBLOC PRO 200 i/ixMONOBLOC PRO 300 i/ix
Nominal capacityL200 / 195270 / 265
Empty weightkg60 / 6267 / 75
Dimensions (Ø/height)mm600 / 1695600 / 1995
Cylinder material-Stainless steel
Polyurethane insulationmm50
Electrical supply-220-240 Vac / single-phase / 50 Hz
Heat pump power consumption (avg/max)W348 / 720
Electric backup power inputW1500
Thermal power output (HP)W1400
Consumption profile-LXL
COP a 70C 1-3,223,30
Energy efficiency class 1-A++A+
Energy efficiency rating 1%133137
Heating time 1(hh:mm)07:2109:52
Annual energy consumption 1kWh/year7711235
COP a 140C 2-3,653,68
Energy efficiency class 2-A++A+
Energy efficiency rating 2%151152
Heating time 2(hh:mm)05:5708:01
Annual energy consumption 2kWh/year6761106
COP a 200C 3-3,933,94
Energy efficiency class 3-A++A++
Energy efficiency rating 3%164162
Heating time 3(hh:mm)05:1607:07
Annual energy consumption 3kWh/year6261032
Useful water volume at 400CL281321
Ambient temperature limits0C-5 / 40
Indoor sound power level 4dB(A)53
Sound pressure at 2mdB(A)36
Airflowm3/h450
Fan static pressurePa80
Maximum duct lengthm36
1 A7/W10-54, according to EN16147 and Commission Delegated Regulation (EU) No. 812/2013 | | 2 A14/W10-54, according to EN16147 and Commission Delegated Regulation (EU)
No. 812/2013 | 3 A20/W10-54, according to EN16147 and Commission Delegated Regulation (EU) No. 812/2013 | 4 According to EN12102

DIMENSIONS mmConnectionsMONOBLOC PRO 200 i/ixMONOBLOC PRO 300 i/ix
AHeight-16951995
BCold water inletG ¾” M131131
CCoil outletG 1” M231231
DInstrumentation-435435
ECoil inletG 1” M690690
FRecirculationG ½” F-840
GPT valveG ½” F9051205
HHot water outletG ¾” M10301325
IDuct spacing-286286
JDiameter-Ø600Ø600
KIntermediate duct diameter-Ø190Ø190
LInternal duct diameter-Ø160Ø160
MExternal duct diameter-Ø200Ø200

catalogs


Installation manuals
ENERGIE EST, Lda.
AQUAPURA MONOBLOC PRO EPP
pt-ptAquapura Monobloc Manual PRO EPP R290 R3V0 EN
Manual Aquapura Monobloc PRO EPP R290 R3V0 PT
