Aquapura Monobloc

homepage / Products / Aquapura Monobloc

Aerothermal heat pump, designed for heating water for residential use.

Hot water up to 600C, with maximum efficiency.

The Aquapura Monobloc Heat Pump is available with capacities from 120 liters, wall mounted version, and 200 liters to 300 liters.
The Aquapura Monobloc Heat Pump has smart photovoltaic function and optional WI-FI.

AQUAPURA MONOBLOC

A COMPACT EQUIPMENT FORHOT WATERS

  • Stainless steel cylinder
  • Minimum occupied space at home
  • High level of efficiency and ecology
  • Quiet operation
  • Time schedule with Chrono function
  • Easy installation
  • Smart photovoltaic function
  • Anti-legionella function
  • Controller with software in 6 languages
  • Dehumidify small spaces
  • Optional coil

+ ROBUST

The new AQUAPURA MONOBLOC heat pumps have a modern design, exterior finish in high impact polymer, combined with components that give it greater longevity, thermal and acoustic insulation, prepared for the placement of Ø160 and Ø190 ducts.

+ SILENT

Equipped with a maximum efficiency centrifugal fan, integrated into a ventilation box designed for minimal noise, with a sound pressure of 36dB(A) 2m.

+ ERGONOMICS

Compact equipment, with stainless steel tank and easy access hydraulic connections, ensuring greater flexibility in installation. The 200 and 270 litre models can be integrated into a 60×60 cm cabinet.

+ EFFICIENCY

They feature a high level of efficiency, giving the entire range the A++ energy class, with one of the highest performance coefficients on the market (COP = 3.9 for the 270 litre model according to EN16147, air at 14°C and water heating from 10°C to 54°C).

HIGH LEVELOF EFFICIENCY

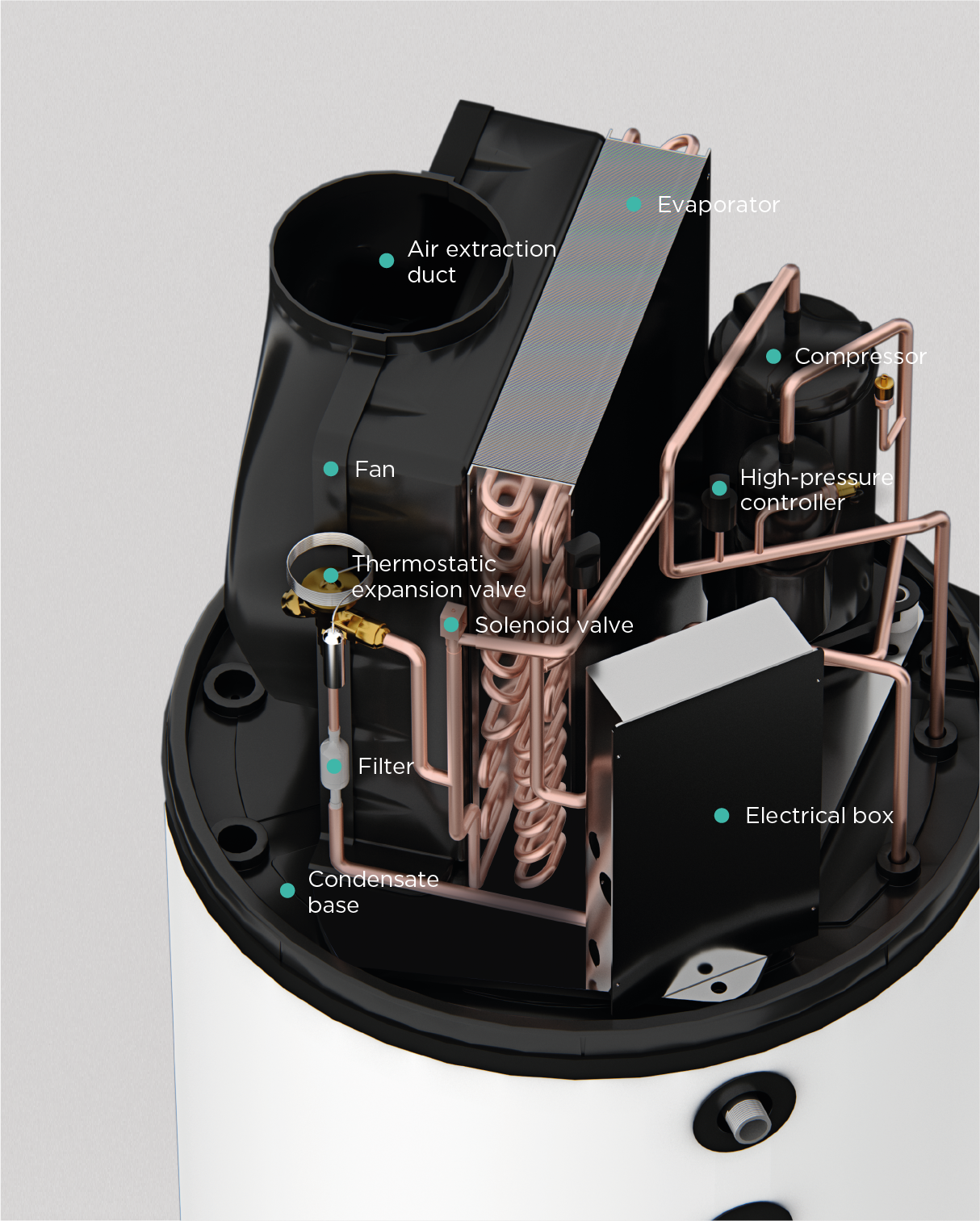

DOMESTIC HOT WATER PRODUCTION

  1. Compressor
  2. Fan
  3. Electrical resistance
  4. Disinfect
  5. Defrost
  6. Solar function
  7. Alarme.

NEW APP NOW AVAILABLE FOR ANDROID

Configureoperating modes

VacationMode

Consumptionhistory

Timeschedule

Temperaturecontrol

Anti-legionellacycle

CAPACITIES T200, 270, 300L

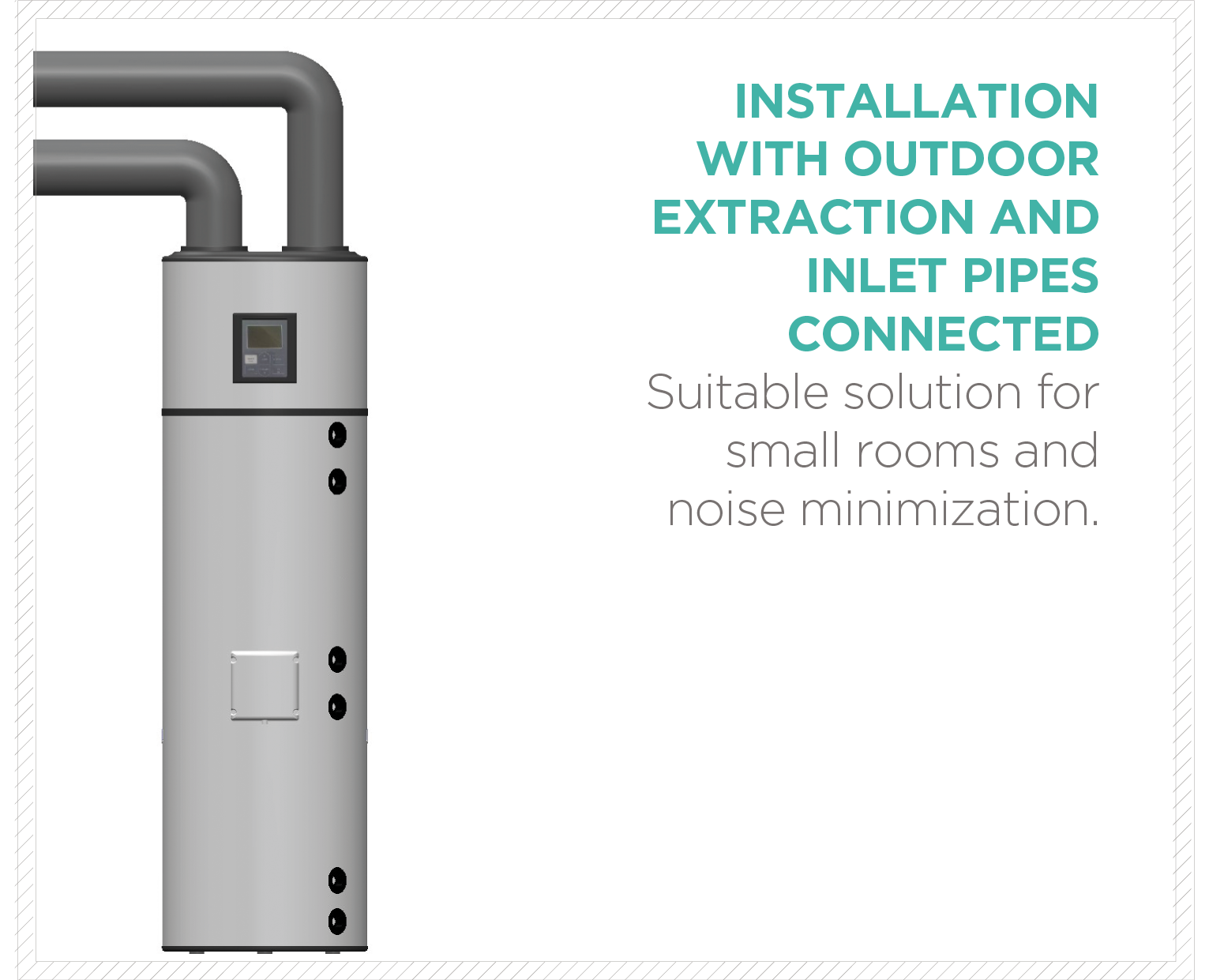

DIFFERENT TYPES OF INSTALLATION

TECHNICAL DATAUn.200i200ix270i270ix300i300ix
Power SupplyV~/Hz220-240/50220-240/50220-240/50220-240/50220-240/50220-240/50
Thermal Power ProvidedW180018001800180018001800
Electric Power ConsumedW400-700400-700400-700400-700400-700400-700
Electric Support PowerW150015001500150015001500
Cop (EN16147)-3.723.723.913.913.843.84
Energy Efficiency (1)%154154161161160160
Heating Time (1) (EN16147)h:mm04:3604:3605:5705:5705:4205:42
Qty. Water withdrawn at (EN16147)l251245323317362355
Sound Pressure at 2mdB363636363636
Ecological Refrigerant-/KgR134a / 1,2
Energy Efficiency Class-A++A++A++A++A++A++
Consumption Profile-LLXLXLXLXL
DIMENSIONS/WEIGHT/DUCT
Dimensions ( Ø / Height)mm580/1695580/1695580/1970580/1970650/1860650/1860
WeightKg.606267757578
Ducts Diametermm160/190160/190160/190160/190160/190160/190
CYLINDER
Nominal Capacityl200195270265300295
Maximum Operating Pressurebar777777
Material-Stainless steel (2)
Insulation-High Density Polyurethane
Corrosion Protection-Magnesium Anode
Auxiliary Coil(Comp./Ø)m/mm-10/25-10/25-10/25
Hydraulic Connections, Inlet/Outlet3/4’’3/4’’3/4’’3/4’’3/4’’3/4’’
Coil Connections-1"-1"-1"
OPERATING CONDITIONS
Operation Temp. (Air) Min/Max°C-5/40-5/40-5/40-5/40-5/40-5/40
Temp. Water Max. (Heat Pump / Boost Mode)°C60 / 7060 / 7060 / 7060 / 7060 / 7060 / 70
(1) EN16147: Water heating from 10°C to 54°C (Air temperature 14°C)
(2) High corrosion resistance

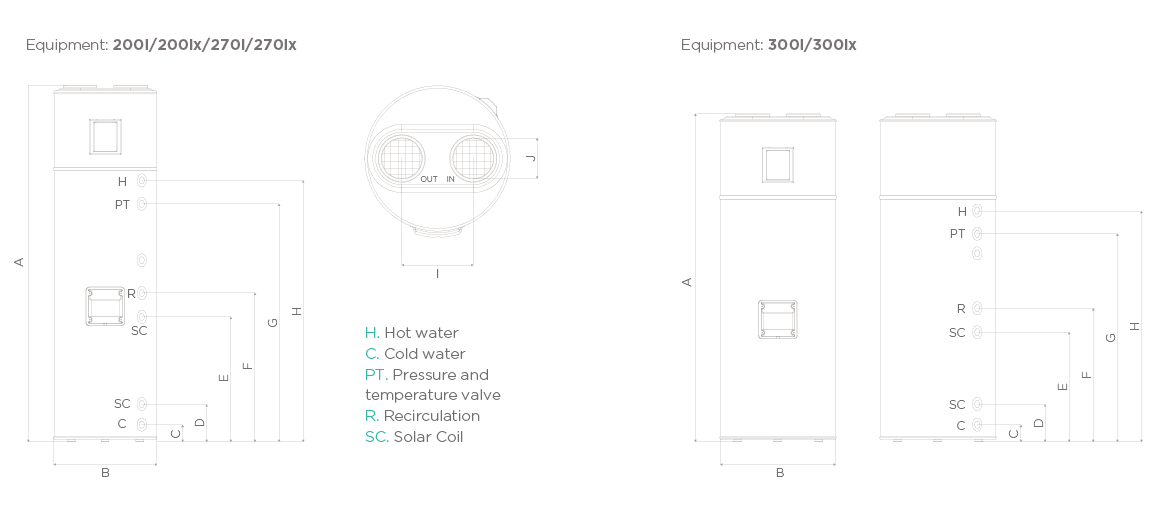

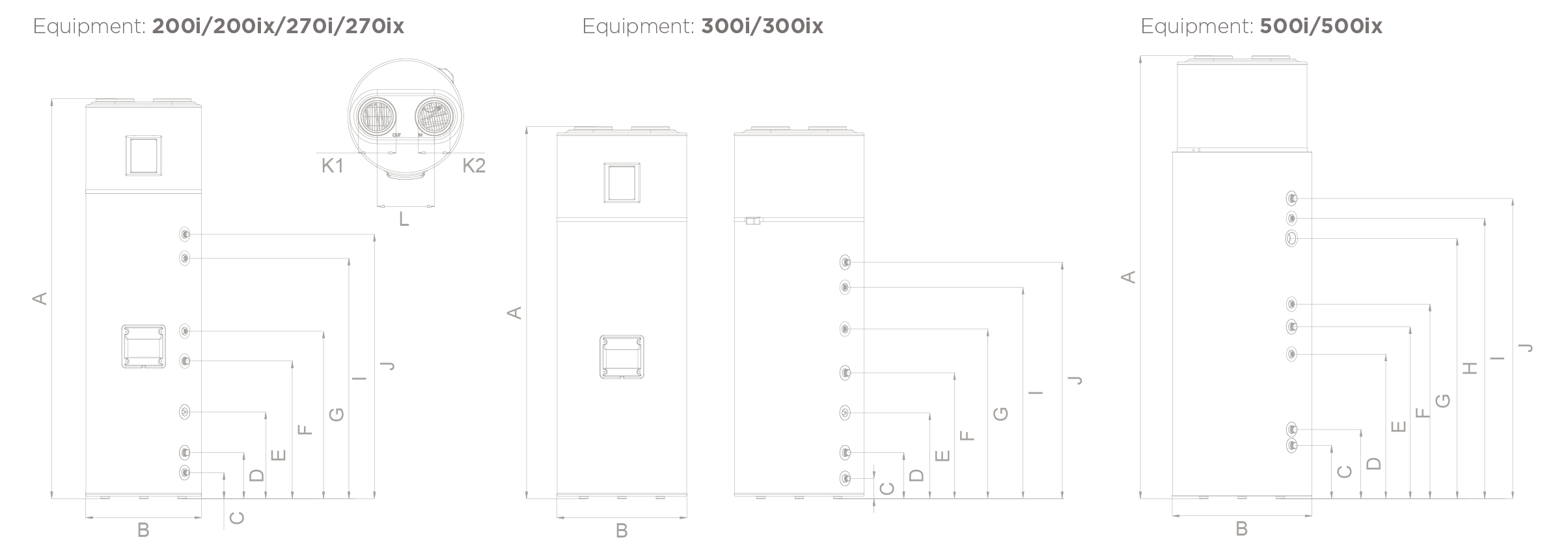

DIMENSIONS mm200i200ix270i270ix300i300ix
A169516951970197018601860
B580580580580650650
C99999999107107
D-215-215-236
E-706-706-636
F820820840840787787
G104410441343134311871187
H118011801475147513301330
I286286286286286286
160/190160/190160/190160/190160/190160/190
