AQUAPURA SPLIT GREEN

homepage / Products / Domestic Hot Water (DHW) / AQUAPURA SPLIT GREEN

Aerothermal heat pump, specially designed for domestic or industrial hot water production.
Equipped with R454C refrigerant, it ensures high energy performance with reduced environmental impact.

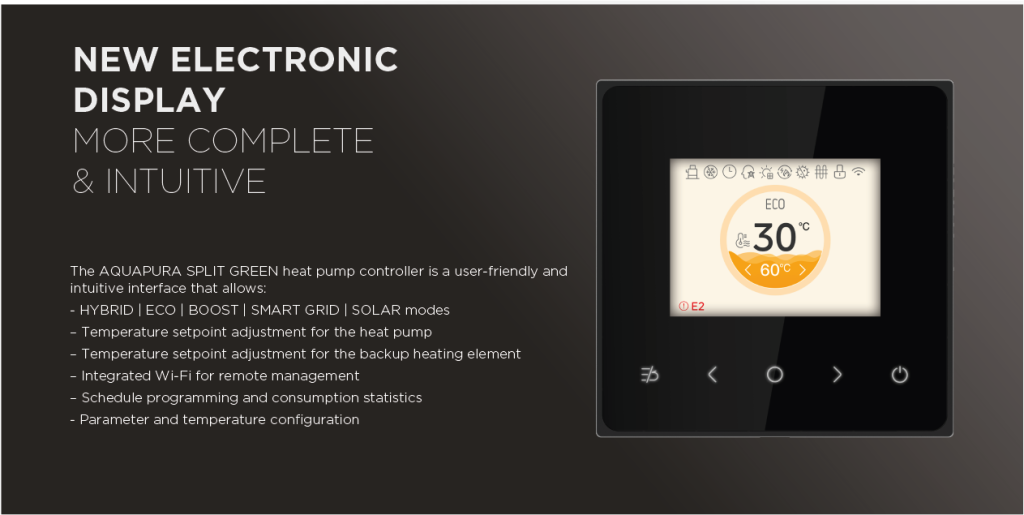

The storage tank integrates easily into any space, being compatible with installation in standard 60×60 cm cabinets, and offers built-in Wi-Fi connectivity, allowing simple and intuitive remote management.
The AQUAPURA SPLIT GREEN heat pump is available in capacities of 160 liters (wall-mounted), 250, 300 and 500 liters.
The storage tank is manufactured in Stainless Steel F18 or Duplex 2205, ensuring durability, corrosion resistance and long-term reliability.
It is composed of an indoor unit, the storage tank, and an outdoor unit, the Split heat pump.
Hot water up to 65°C, with maximum efficiency.

Contact us
Ask us for a quote

EFFICIENCY
& QUALITY

OPERATING PRINCIPLE

The refrigerant fluid is pumped into an external heat exchanger (evaporator). Here, with the help of a fan, it absorbs energy from the surrounding air due to the temperature differential achieved outside, resulting in a phase change to the gaseous state. It is then drawn into the mechanical part of the system, the compressor. At this stage, the fluid is compressed, pressure increases, and consequently its temperature rises. The fluid then flows to a second internal heat exchanger (condenser), where it transfers heat to the water stored in the tank. As the temperature decreases, the fluid changes back to its liquid state. Its pressure is reduced by a throttling effect in the expansion valve, and the cycle starts again.

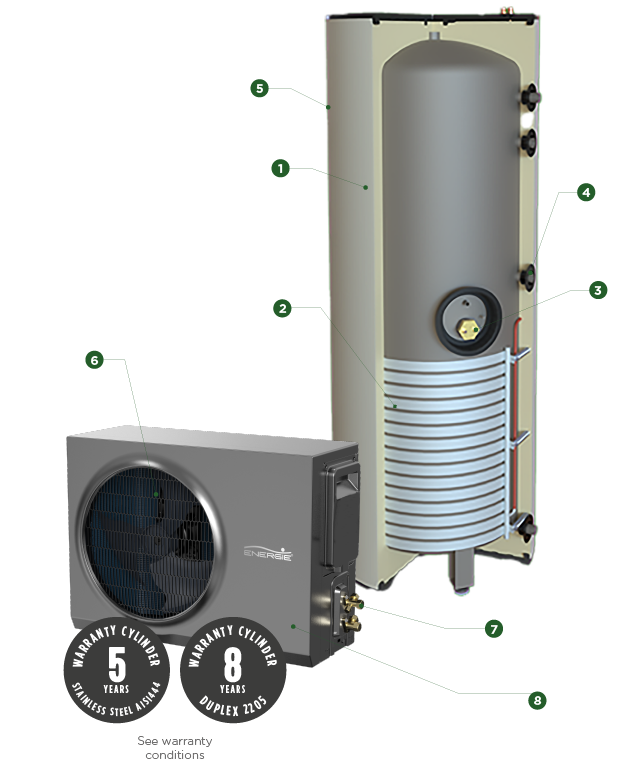

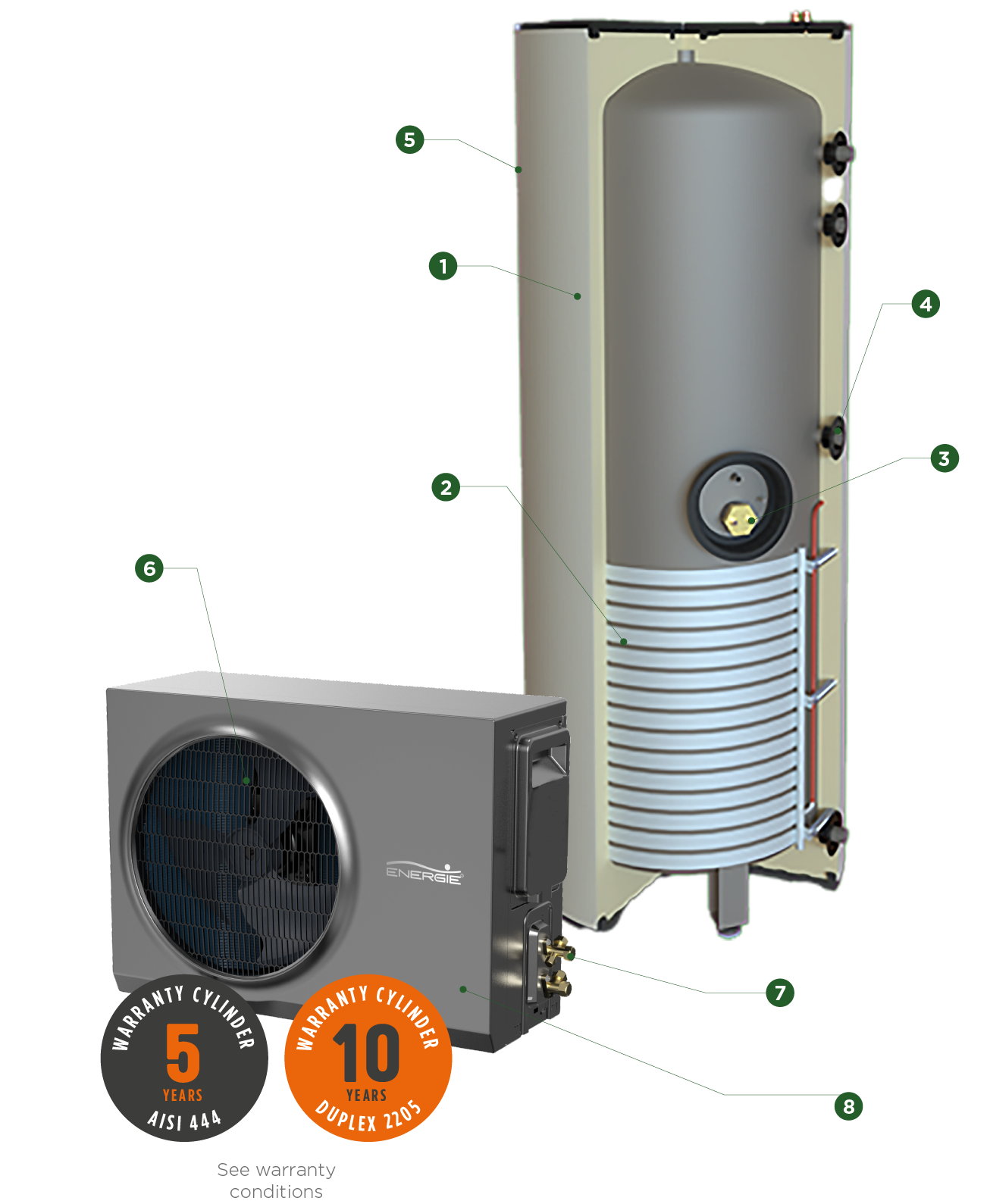

  1. Cylinder
  2. Condensador
  3. Ceramic Resistance + Sensor
  4. Magnesium Anode (if applicable)
  5. Split Cover
  6. Ventilator
  7. Flare connection – easy installation (1/4” | 3/8”)
  8. Outdoor unit casing in polymer material (ABS)

HEAT PUMPS
FOR DOMESTIC
HOT WATER

We select the best components and subject our systems to the most rigorous quality tests to ensure maximum customer satisfaction. Models 160L, 200L, and 300L can be recessed into a 60x60cm cabinet.

The AQUAPURA SPLIT GREEN heat pump is a modern, efficient, and ecofriendly solution for producing domestic hot water, ideal for both residential use and high-demand applications such as hotels, hospitals, or gyms. With direct condensation technology, it consists of an outdoor unit and an internal storage tank, connected by piping up to 30 meters in total length, with a maximum height difference of 20 meters between units. The AQUAPURA SPLIT GREEN heat pump operates at outdoor temperatures down to -15°C and allows the production of domestic hot water up to 65°C using only the compressor, enabling the direct replacement of conventional systems such as water heaters or electric cylinders.

  • Wall-mounted and floor-standing heat pumps, with capacities from 160 to 500L
  • Stainless steel tank (AISI 444 or Duplex 2205), with external condenser
  • Domestic hot water production up to 65°C using only the compressor
  • Rapid heating: DHW in less than 3 hours, up to 75% energy savings
  • Quiet operation, no ducting required
  • Flexible installation: up to 30 m distance and 20 m height difference
  • Models can be recessed into a standard 60×60 cm cabinet



OUTSIDE UNITSPLIT 160 | 250 | 300 | 500
WeightKg.28
Refrigerating connectionspol.1/4” | 3/8”
Sound leveldB53
Power supplyV/Hz230 / 50
Protection Index-IPX1
Absorbed electrical power (HP) (med / max)W550/ 1100
Thermal power supplied (HP) (med / max)W1900/ 3520
Maximum distance between unitsm30 (hight max. 20)
Outdoor operating temperature range°C-15 / 45
Refrigerating fluidtipo/gR454C / 900
Air flowm3/h1500

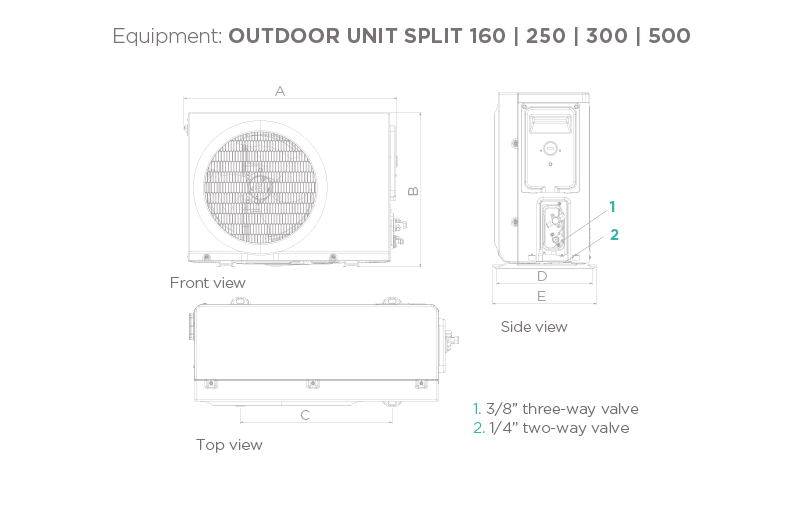

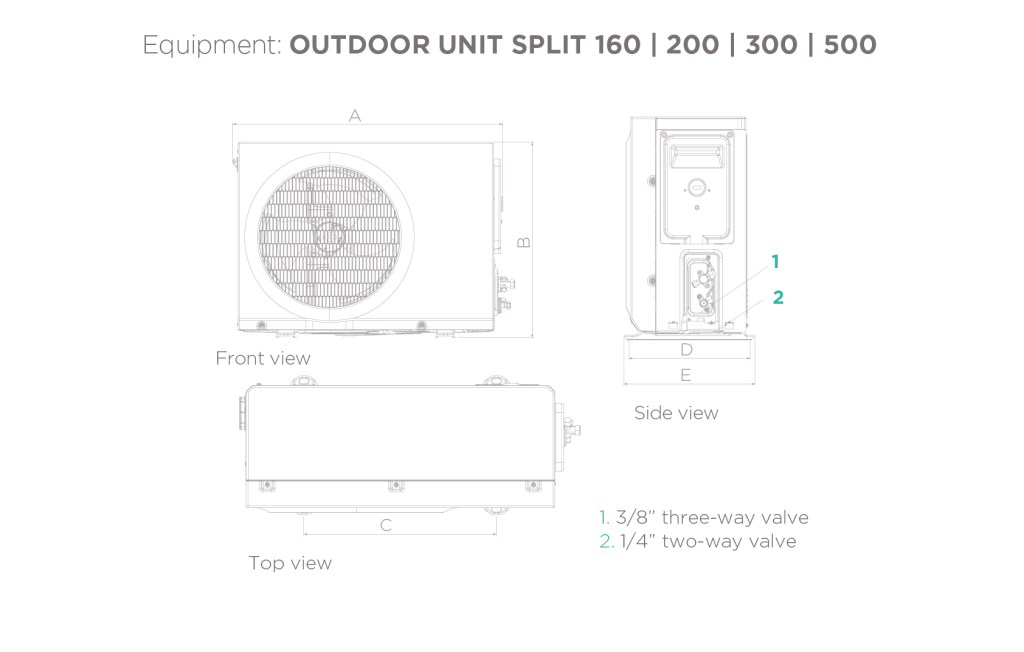

DIMENSIONS mm
A767
B555
C452
D302
E327

CYLINDER TECHNICAL DATASPLIT 160 (MURAL)
CapacityL160
Dimensions (ø | height)mm530/1141
Gross weightKg.32
Material-Stainless Steel Duplex 2205
Insulation-High density polyurethane (55mm)
Maximum water temperature°C80
Maximum operation pressurebar7
Thermal loss 1kWh/24h0,94
Protection Index-IPX1
Auxiliary coil powerW1500
Refrigerating connectionspol.1/4” | 3/8”
1 According to EN12897
PERFORMANCE
Tapping profile-L
COP-3,36 1 | 3,93 2 | 4,28 3
Amount of water removed at 40°CL191
Energy efficiency class-A+ 1 | A++ 2 | A++ 3
Energetic efficiency%139 1 | 163 2 | 178 3
Annual electricity consumptionkWh/year734 1 | 629 2 | 577 3
1 EN16147: Heating water from 10°C to 54°C (Air temperature 7°C)
2 EN16147: Heating water from 10°C to 54°C (Air temperature 14°C)
3 EN16147: Heating water from 10°C to 54°C (Air temperature 20°C)

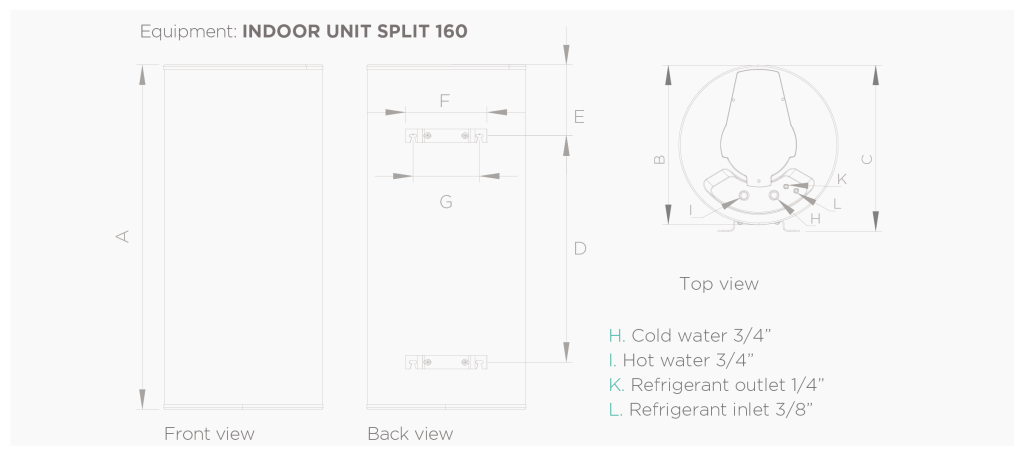

DIMENSIONS mmSPLIT 160 (MURAL)
A1141
BØ530
C550
D750
E235
F275
G220



CYLINDER TECHNICAL DATASPLIT 250 I/IXSPLIT 300 I/IXSPLIT 500 I/IX
CapacityL200 / 190270 / 260455 / 445
Dimensions (ø | height)mm580 / 1240580 / 1540650 / 2020
Gross weightKg.46 / 5150 / 5773 / 95
Material-Stainless Steel F18 (optional Duplex2205)
Insulation-High density polyurethane (55mm)
Corrosion protection-Magnesium anode 1” 1/4 (if applicable)
Maximum water temperature°C80
Maximum operation pressurebar7
Thermal loss 1kWh/24h0,991,011,81
Coil (ø | length)m0,025 | 100,025 | 100,025 | 24
Coil thermal power 2kW202054
Protection Index-IPX1
Auxiliary coil powerW150015002000
Refrigerating connectionspol.1/4” | 3/8”1/4” | 3/8”1/4” | 3/8”
1 According to EN12897
2 Primary circuit (Te=90°C; Ts=80°C); DHW circuit (Te=10°C; Ts=60°C)
PERFORMANCE
Tapping profile-LXLXXL
COP-3,38 3 | 4,05 4 | 4,30 53,39 3 | 4,06 4 | 4,28 53,25 3 | 3,83 4 | 4,12 5
Amount of water removed at 40°CL281351599
Energy efficiency class-A+ 3 | A++ 4 | A++ 5A+ 3 | A++ 4 | A++ 5A+ 3 | A+ 4 | A++ 5
Energetic efficiency%140 3 | 169 4 | 180 5139 3 | 167 4 | 176 5134 3 | 158 4 | 171 5
Annual electricity consumptionkWh/year731 3 | 605 4 | 570 51202 3 | 1003 4 | 951 51604 3 | 1362 4 | 1263 5
3 EN16147: Water heating from 10°C to 54°C (air temperature 7°C)
4 EN16147: Water heating from 10°C to 54°C (air temperature 14°C)
5 EN16147: Water heating from 10°C to 54°C (air temperature 20°C)

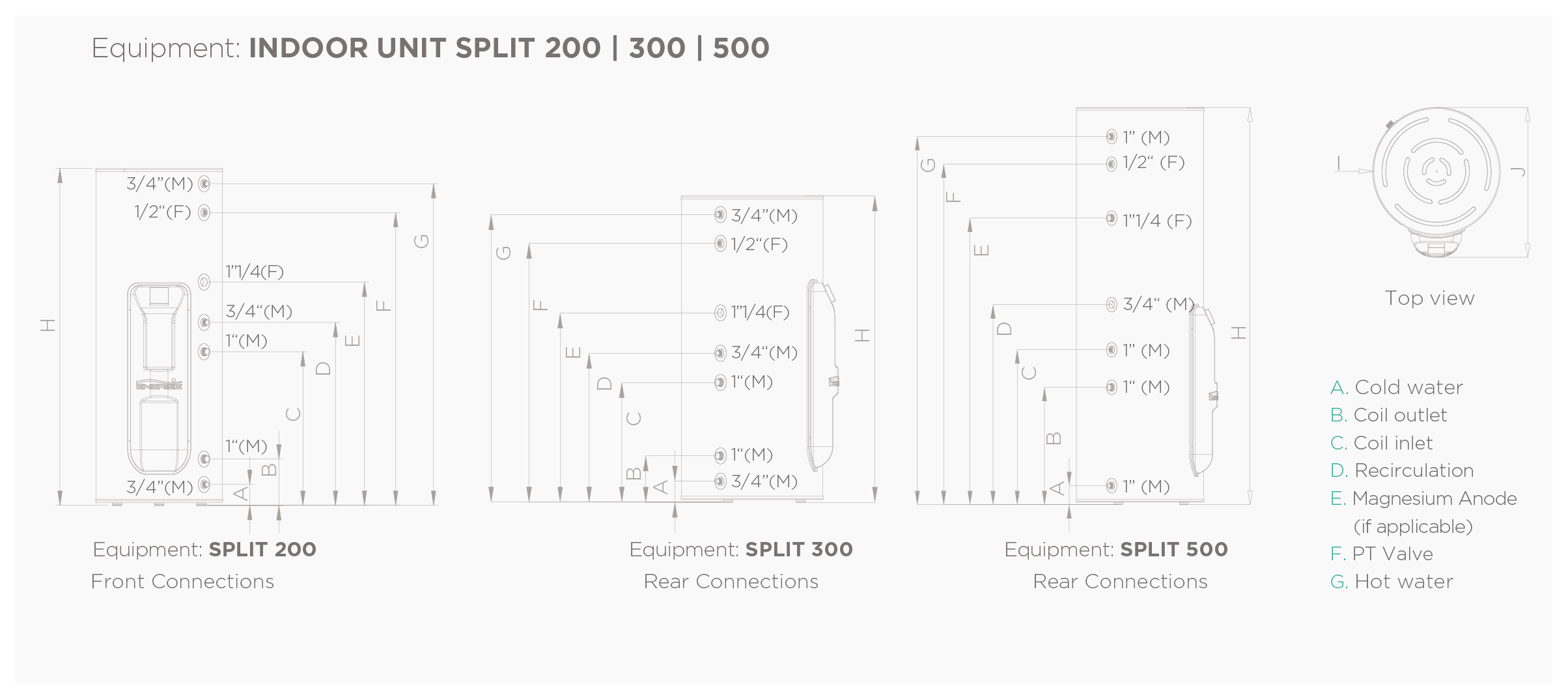

DIMENSIONS mmSPLIT 250 I/IXSPLIT 300 I/IXSPLIT 500 I/IX
A231131102
B435231237
C690435657
D-690784
E9058401095
F103012051772
G124013251937
HØ 58015402020
I600Ø 580Ø 650
J220600764
K220-
