Heat pump indoor module plug and play solution that combines a buffer tank and domestic hot water cylinder in a single unit.
The THERMOBOX DUO range has available several models developed considering all types of housing, namely single and multifamily constructions.
Models 160/50 and 200/50 are the ideal solutions for various construction projects, meeting Heating & Cooling and Domestic Hot Water needs (DHW).
Not all the energy generated by the heat pumps gets used immediately. In this case, it makes sense to store the heat generated from renewable energy sources efficiently with the lowest possible heat losses. That makes heat storage an important component of any heating system.

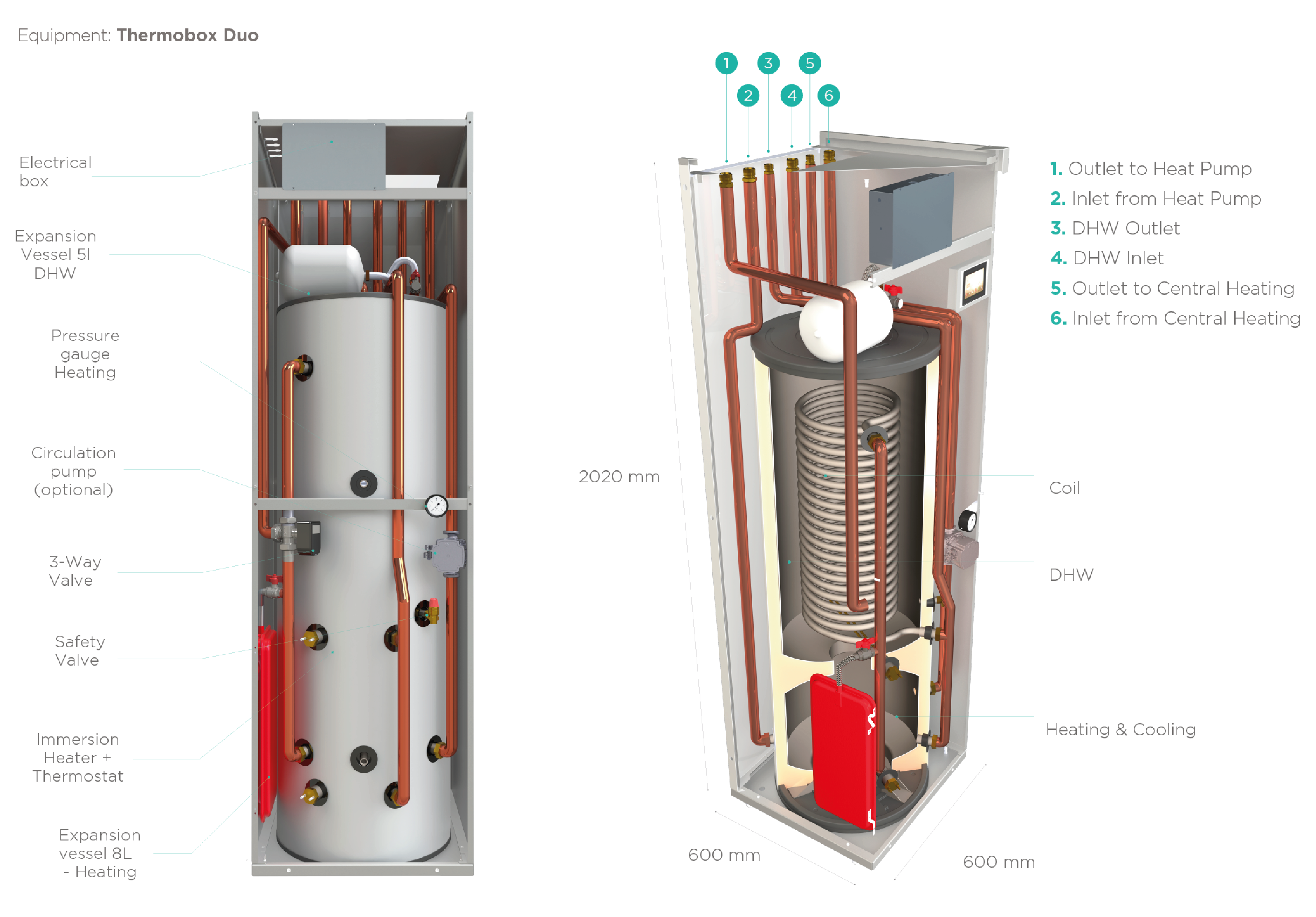

The THERMOBOX DUO is an efficient time and space saving solution to couple with your heat pump that includes a DHW and Buffer Cylinder. Comes with all components required for a fast Plug and Play solution, reducing installation time, costs and ensuring a correct installation.
THERMOBOX DUO stands out for its simple and easy installation process (Plug and Play), 100% hydraulic and without handling fluorinated gases.
The two types of storages are kept separate from one another, making possible to use the buffer tank for cooling during the summer.
THERMOBOX DUO interior unit was built with special regard for the space and area it takes inside the house, as well as the visual impact it causes.
Allows for an easy integration, considering its reduced dimensions (60×60 cm).
Is the ideal solution if you don’t have much space available and you still want to have an efficient and environmentally friendly storage system.
The THERMOBOX DUO range has available several models developed considering all types of housing, namely single and multifamily constructions. Models 160/50 and 200/50 are the ideal solutions for various construction projects, meeting Heating & Cooling and Domestic Hot Water needs (DHW).
TECHNICAL DATA | THERMOBOX DUO 160/50 | THERMOBOX DUO 200/50 | |||
---|---|---|---|---|---|
Working modes | - | Heating/Cooling/DHW | |||
Unit management | - | LCD Display | |||
DHW cylinder | L | 160 | 180 | ||
Energy efficiency class | B | ||||
Buffer tank | L | 50 | 50 | ||
Energy efficiency class | - | B | |||
Type of cylinder | - | Stainless Steel 444 | |||
Thermal insulation | Type | - | High density polyurethane | ||
Thickness | mm | 50 | |||
Thermal conductivity | W/m.k | 0,025 | |||
Electrical backup | DHW immersion heater | W/A | 1500 / 6.5 | ||
Buffer tank immersion heater | W/A | (optional) | |||
Voltage | V~/Hz | 230 / 50 | |||
Dimensions & weight | Dimensions | mm | 1950x600x600 | ||
Weight | Kg | 163 | |||
Water circuit | Maximum temperature | 0C | 80 | ||
DHW expansion vessel | L | 5 | |||
Central heating expansion vessel | L | 8 | |||
DHW safety valve | Bar | 7 | |||
Central heating safety valve | Bar | 3 | |||
Coil surface area | m2 | 1,6 | |||
Circulation pump head | m | 8 | |||
Drain | ø/mm | 14 | |||
Heat pump connections | Pol. | 1” M | |||
Central heating connections | Pol. | 1” M | |||
DHW connections | Pol. | 3/4”M |
