Next generation Thermodynamic Solar Heat Pump, specially designed for domestic hot water heating. The ideal solution for your home.

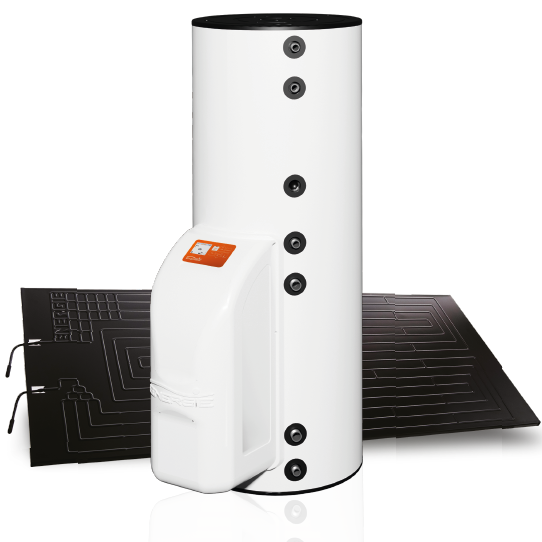

The ECO is available in 250 to 500 liter capacities. It comes in versions with 1 or 2 thermodynamic solar panels and storage tanks equipped with or without an additional coil, in Stainless Steel 444 or Duplex 2205.
The system is composed of an indoor unit, the hot water storage tank and an outdoor unit, the thermodynamic solar panel.
Hot water up to 55°C, 24 hours a day, with maximum efficiency.

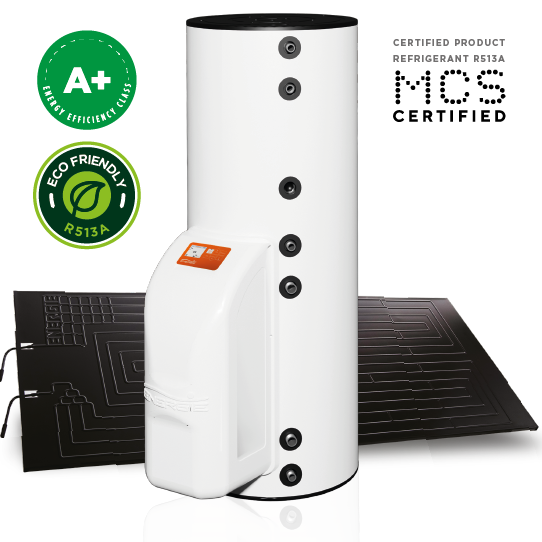

Tested and certified according to the most rigorous European standards it has achived an extraordinary coefficient of performance of 3,9 according to the EN16147. The testing was carried out without solar irradiance, wind or rain. To enhance the real operating performance even more we advise to instal the thermodynamic solar pane facing South (North on the southern hemisphere), east or west. Vertically or horizontally on a wall, roof, flat roofbut always on a landscape position.
The thermodynamic solar panel is made of anodised aluminium with a special Solokote finishing that ensures it’s robust and longlasting against corrosion, in particular when exposed to saline and/or aggressive environments. This innovative technical feature allows energie to provide a 10 years warranty against corrosion, ensuring peace of mind to the end user.
The high efficiency of the hot water cylinder is achieved by using a high-density polyurethane foam that ensures a low heat loss rate, being able to keep the water heated for several days in a row even if the units is turned off.
The equipment’s indoor unit has a stainless steel cylinder, as well as an external condenser. High density injected polyurethane insulation with cathodic protection. The thermodynamic block is equipped with a state-of-the-art compressor, with one of the lowest electrical consumptions on the market.

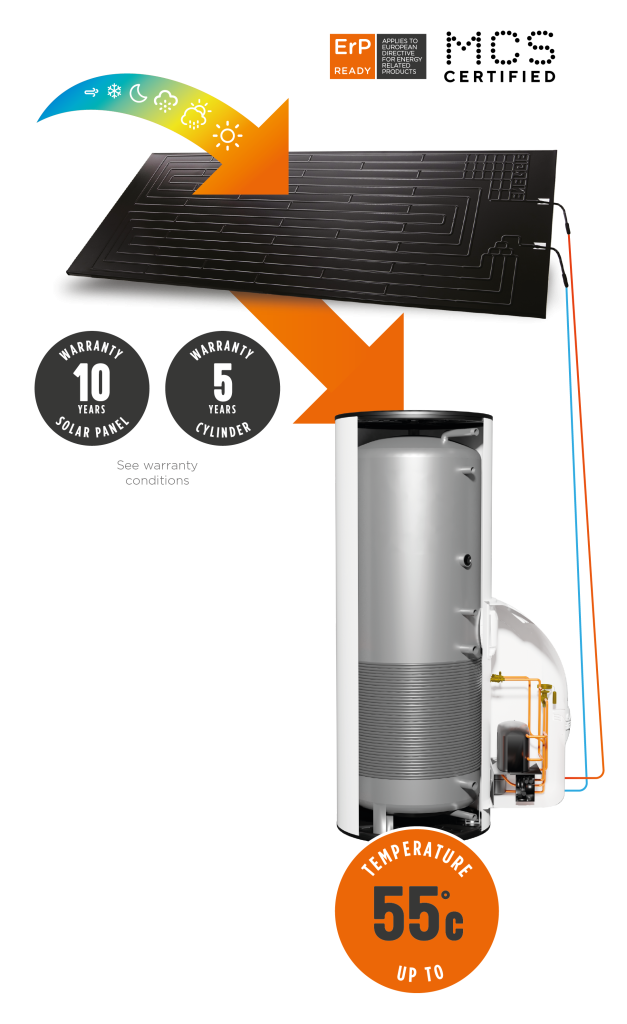

The evaporation of the fluid that runs inside the closed looped circuit happens on the solar panel by capturing the heat from the sun, wind, rain and surrounding air by natural convection. The heated fluid then travels to the compressor, that will compress the fluid increasing its pressure and also it’s temperature. Then it goes to the heat exchanger where where this heat is transferred to the water. After this, an expansion valve will make the pressure and temperature drop to sub-zero values. The fluid travels up to the thermodynamic solar panel and the cycle repeats again.
ECO Operating Mode
The equipment only works as a Thermodynamic Solar System
AUTO Operating Mode
The equipment works as a Thermodynamic Solar System and/or electrical support should be required
BOOST Operating Mode
The equipment works with a Thermodynamic Solar System and electrical support simultaneously.
Take Full advantage of your PV System:
• Sets new standards of smart energy management
• Maximize your PV Solar Panels production and reduce your DHW costs
• Maximize the solar irradiation available by having the thermodynamic solar system working more when there is more sun available
• Get the balance between PV production and consumption with our intelligent controller
With PV Smart Grid Ready, the ENERGIE Solar System absorbs the extra power generated by
PV Panels, Wind Energy or Small Hydro storing, what would be lost energy, into the water, enabling you to save even more.
ECO – 1 Panel
STORAGE WATER HEATER | 200I | 250I | 300I | 200IX | 250IX | 300IX | ||
---|---|---|---|---|---|---|---|---|
Net Weight | Kg. | 60 | 50 | 45 | 83 | 52 | 57 | |
Volume | L | 200 | 300 | 200 | 250 | 245 | 295 | |
Storage Water Heater Material | - | Stainless steel | ||||||
Cathodic Protection | - | Mg Anode (1”1/4) * | ||||||
Hydraulic Connections | Water - Inlet and Outlet | Pol. | 3/4” | 3/4” | 3/4” | 3/4” | 1” | 1” |
PT Valve | - | 1/2” | 1/2” | 1/2” | 1/2” | 1/2” | ||
Recirculation | - | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” 3/4” | ||
Coil | entrance and exit | - | - | - | - | 1" | 1" | 1" | |
Insulation | High density polyurethane 50mm | |||||||
Maximum Pressure | Bar | 7 | 7 | 7 | 7 | 7 | 7 | |
Maximum Operating Temperature | °C | 80 | 80 | 80 | 80 | 80 | 80 | |
Heat Loss (EN12897) | kWh/24h | 0.99 | 1.17 | 1.04 | 1.20 | 1.01 | 1.17 | |
Heat Exchanger Capacity (1) | kWh | Not applicable | Not applicable | Not applicable | a)20 ; b)12 | a)20 ; b)12 | a)20 ; b)12 | |
THERMODYNAMIC SOLAR PANEL | ||||||||
Material | - | Anodized Aluminum Solarcoat | ||||||
Dimensions (W x H x D) | mm | 2000 x 800 x 20 | ||||||
Weight | Kg. | 8 | ||||||
Maximum Exposure Temperature | °C | -40 | 120 | ||||||
THERMODYNAMIC BLOCK | ||||||||
Dimensions (W x H x D) | mm | 320 / 710 /280 | ||||||
Weight | Kg. | 17.5 | ||||||
Absorbed Power (Avg/Max) | W | 390 | 650 | ||||||
Thermal Power (Avg/Max) | W | 1400 | 2380 | ||||||
Electric Support Power | W | 1500 | ||||||
Refrigerant Fluid / Qt. (2) | -/g | R513a / 1300 | ||||||
Piping Material | - | Copper (DHP ISO1337) | ||||||
Liquid line | Asp. | Pol. | 1/4” | 3/8” | ||||||
Power Supply | V / Hz | 230 / Single-phase / 50 or 60 (3) | ||||||
PERFORMANCE (4) | 200I | 250I | 300I | 200IX | 250IX | 300IX | ||
Load Profile | - | L | XL | XL | L | XL | XL | |
Coefficient of Performance (COP) | Air 14°C | - | 3.69 | 3.84 | 3.92 | 3.69 | 3.84 | 3.92 |
Energy Efficiency Class | Air 14°C | - | A++ | A+ | A++ | A++ | A+ | A++ |
Energy Efficiency | Air 14°C | - | 154 | 158 | 162 | 154 | 158 | 162 |
Annual Energy Consumption | Air 14°C | KWh/year | 664 | 1060 | 1037 | 664 | 1060 | 1037 |
Amount of useful water at 40°C | L | 261.3 | 349 | 362.5 | 253.3 | 344 | 357.5 | |
Set point | °C | 54 | 54 | 54 | 54 | 54 | 54 | |
Interior sound level | dB | 47 | 47 | 47 | 47 | 47 | 47 | |
(1) a) Primary Circuit (Te = 90°C; Ts = 80°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) | b) Primary Circuit (Te = 70°C; Ts = 60°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) (2) The fluid quantity must be verified by the installer. In certain cases, it is necessary to adjust the amount of fluid to ensure proper system operation (3) The 60 Hz frequency is available only on request. (4) According to EN16147, Delegated Regulation (EU) Nº812/2013 and Delegated Regulation (EU) Nº814/2013. * - If applicable |
||||||||

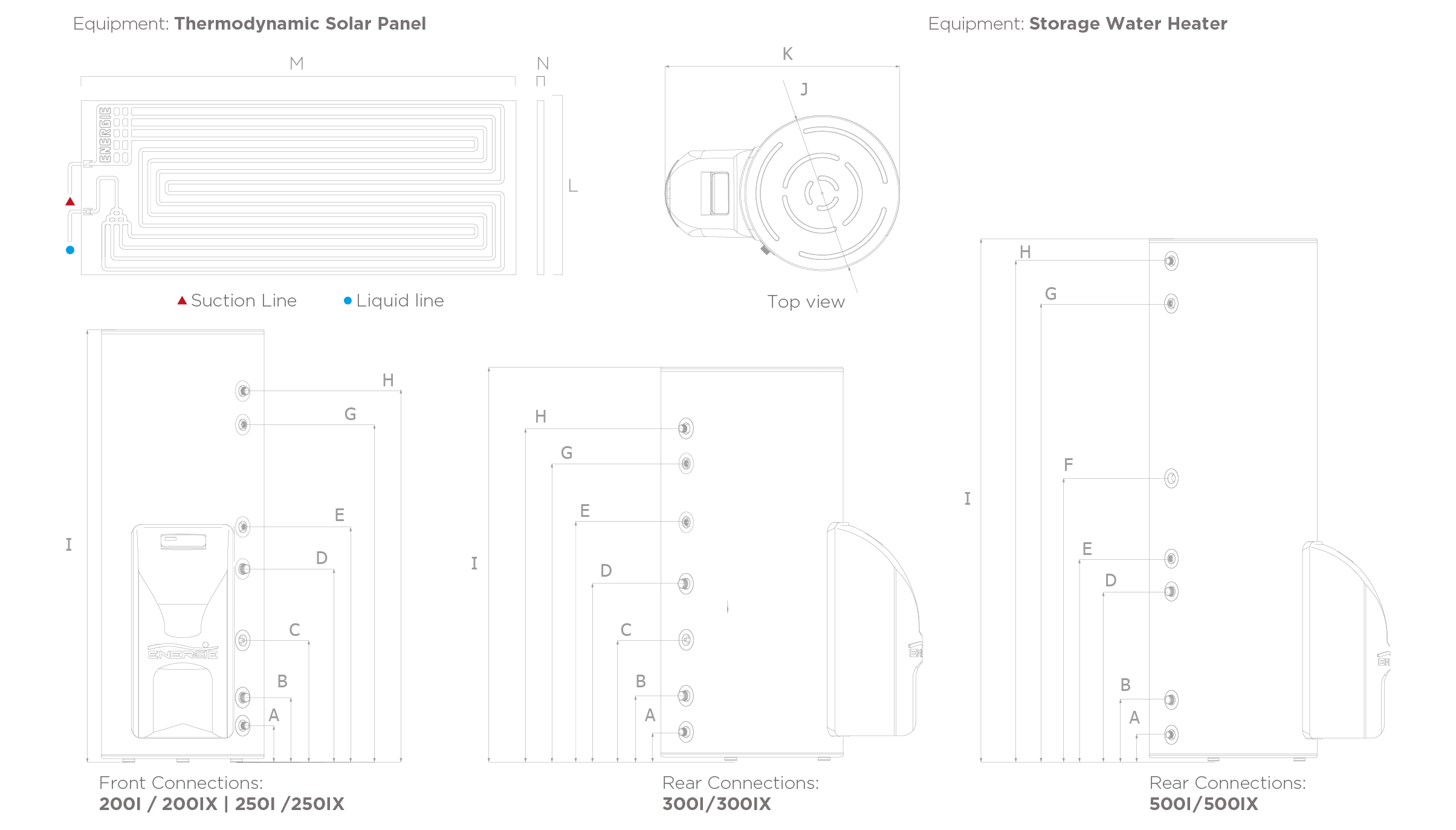

DIMENSIONS mm | 200I | 250I | 300I | 200IX | 250IX | 300IX | ||
A | Cold water | 131 | 131 | 102 | 131 | 131 | 102 | |
B | Coil outlet | - | - | - | 231 | 231 | 231 | |
C | Instrumentation | - | - | - | 435 | 435 | 431 | |
D | Coil inlet | - | - | - | 690 | 690 | 631 | |
E | Recirculation | - | 840 | 850 | - | 840 | 850 | |
F | Anode | - | - | - | - | - | - | |
G | PT valve | 905 | 1205 | 1060 | 905 | 1205 | 1060 | |
H | Hot water | 1030 | 1325 | 1185 | 1030 | 1325 | 1185 | |
I | Height | 1243 | 1543 | 1403 | 1243 | 1543 | 1403 | |
J | Diameter | 580 | 580 | 650 | 580 | 580 | 650 | |
K | Depth | 879 | 879 | 953 | 879 | 879 | 953 | |
L | 800 | |||||||
M | 2000 | |||||||
N | 20 |
ECO – 2 Panels
STORAGE WATER HEATER | 200IS | 250IS | 300IS | 250ISX | 300ISX | 500IS | 500ISX | ||
---|---|---|---|---|---|---|---|---|---|
Net Weight | Kg. | 60 | 50 | 95 | 52 | 57 | 66 | 93 | |
Volume | L | 200 | 300 | 300 | 245 | 295 | 455 | 455 | |
Storage Water Heater Material | - | Stainless steel | |||||||
Cathodic Protection | - | Mg Anode (1”1/4) * | |||||||
Hydraulic Connections | Water - Inlet and Outlet | - | 3/4” | 3/4" | 3/4" | 3/4" | 3/4" | 1" | 1" |
PT Valve | Pol. | 1/2” | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |
Recirculation | - | - | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | |
Coil | entrance and exit | - | - | |||||||
Insulation | - | High density polyurethane 50mm | |||||||
Maximum Pressure | bar | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
Maximum Operating Temperature | °C | 80 | 80 | 80 | 80 | 80 | 80 | 80 | |
Heat Loss (EN12897) | kWh/24h | 0.99 | 1,17 | 1.39 | 1,01 | 1,17 | 1.81 | 1.81 | |
Heat Exchanger Capacity (1) | kWh | Not applicable | Not applicable | Not applicable | a)20 ; b)12 | a)20 ; b)12 | Not applicable | a)20 ; b)12 | |
THERMODYNAMIC SOLAR PANEL | |||||||||
Material | mm | Anodized Aluminum Solarcoat | |||||||
Dimensions (W x H x D) | Kg | 2000 x 800 x 20 | |||||||
Weight | bar | 8 | |||||||
Maximum Exposure Temperature | °C | -40 | 120 | |||||||
THERMODYNAMIC BLOCK | |||||||||
Dimensions (W x H x D) | mm | 320 / 710 /280 | |||||||
Weight | Kg. | 17.5 | |||||||
Absorbed Power (Avg/Max) | W | 390 | 650 | |||||||
Thermal Power (Avg/Max) | W | 1400 | 2380 | |||||||
Electric Emergency Backup | W | 1500 | 2200 | ||||||
Refrigerant Fluid / Qt. (2) | -/g | R513a / 1400 | |||||||
Piping Material | - | Copper (DHP ISO1337) | |||||||
Liquid Line | Suction Line | Pol. | 1/4" | 3/8" | |||||||
Power Supply | V / Hz | 230 / Single-phase / 50 or 60 (3) | |||||||
PERFORMANCE (4) | 200IS | 250IS | 300IS | 250ISX | 300ISX | 500IS | 500ISX | ||
Load Profile | - | L | XL | XL | XL | XL | XXL | XXL | |
Coefficient of Performance (COP) | Air 14°C | - | 3,6 | 3,7 | 3,8 | 3,7 | 3,8 | 3,7 | 3,7 |
Energy Efficiency Class | Air 14°C | - | A++ | A+ | A+ | A+ | A+ | A+ | A+ |
Energy Efficiency | Air 14°C | - | 152 | 154 | 158 | 154 | 158 | 152 | 152 |
Annual Energy Consumption | Air 14°C | -KWh/Year | 673 | 1091 | 1063 | 1091 | 1063 | 1416 | 1416 |
Amount of useful water at 40°C | L | 231 | 349 | 363 | 344 | 358 | 599 | 599 | |
Set point | °C | 54 | 54 | 54 | 54 | 54 | 54 | 54 | |
Interior sound level | dB | 47 | 47 | 47 | 47 | 47 | 47 | 47 | |
(1) a) Primary Circuit (Te = 90°C; Ts = 80°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) | b) Primary Circuit (Te = 70°C; Ts = 60°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) (2) The fluid quantity must be verified by the installer. In certain cases, it is necessary to adjust the amount of fluid to ensure proper system operation (3) The 60 Hz frequency is available only on request. (4) According to EN16147, Delegated Regulation (EU) Nº812/2013 and Delegated Regulation (EU) Nº814/2013. * - If applicable |
|||||||||
DIMENSIONS mm | 200IS | 250IS | 300IS | 250ISX | 300ISX | 500IS | 500ISX | ||
A | Cold water | 131 | 131 | 102 | 131 | 102 | 102 | 102 | |
B | Coil outlet | - | - | - | 231 | 231 | - | 237 | |
C | Instrumentation | - | - | - | 435 | 431 | - | - | |
D | Coil inlet | - | - | - | 690 | 631 | - | 657 | |
E | Recirculation | - | 840 | 850 | 840 | 850 | 784 | 784 | |
F | Anode | - | - | - | - | - | 1095 | 1095 | |
G | PT valve | 905 | 1205 | 1060 | 1205 | 1060 | 1772 | 1772 | |
H | Hot water | 1030 | 1325 | 1185 | 1325 | 1185 | 1937 | 1937 | |
I | Height | 1243 | 1543 | 1403 | 1543 | 1403 | 2023 | 2023 | |
J | Diameter | 580 | 580 | 650 | 580 | 650 | 650 | 650 | |
K | Depth | 879 | 879 | 953 | 879 | 953 | 953 | 953 | |
L | 800 | ||||||||
M | 2000 | ||||||||
N | 20 |
