Thermocylider

ENERGIE thermocylinders are containers in which hot water is stored, allowing you to meet the needs at times of greater consumption or simultaneous consumption in different parts of the building. Manufactured in single coil stainless steel, available in 160, 200 and 300 litre capacities.

The ideal solution for medium-sized flats and houses. This range is compatible with all ENERGIE heat pumps.

Ask us for a quote

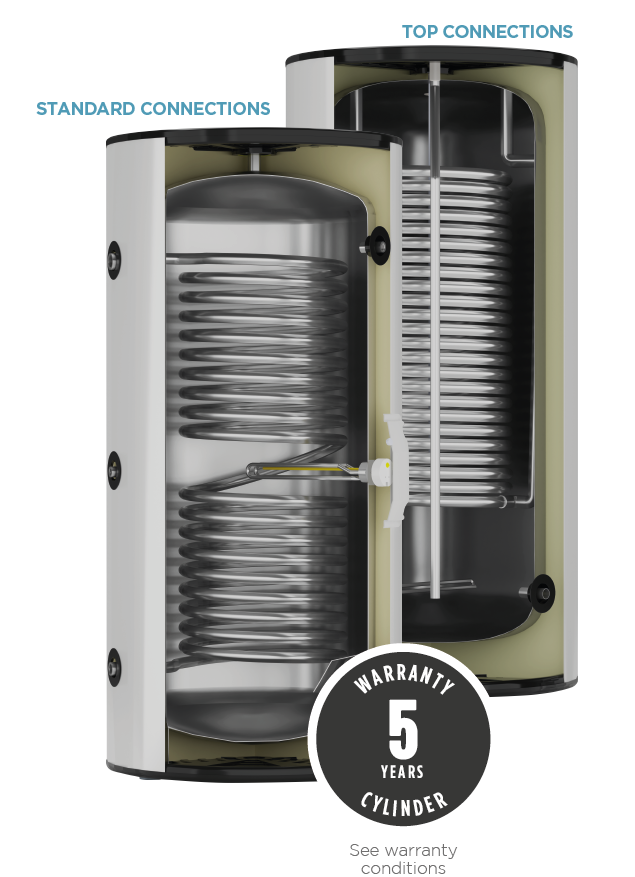

THERMOCYLINDER

DHW CYLINDER FOR HEAT PUMP

High quality and precision stainless steel vessel with high density PU rigid insulation (PU free of CFC and HCFC).
XL coil suitable for heat pump.
Immersion heater included.
Integration in small spaces, 60×60 cm module.
Easy to install.
3 adjustable feet.

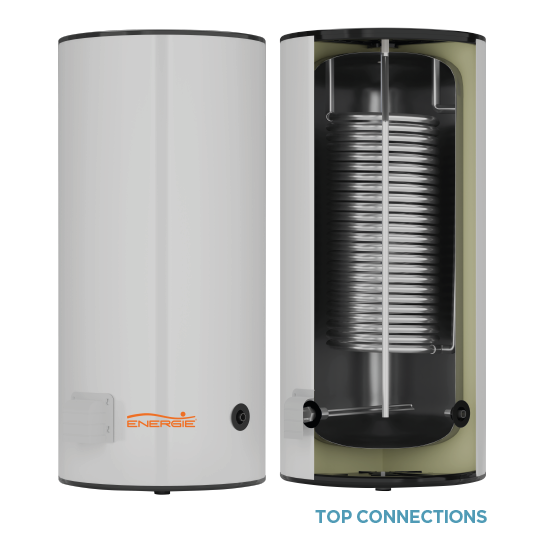

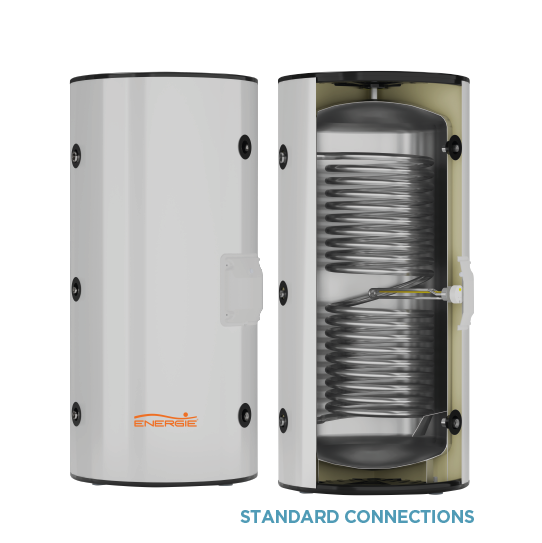

STA	Ø Pol.	200L mm	300L mm	OBS.	TOP	Ø Pol.	160L mm	200L mm	300L mm	OBS.
A	G 3/4” F	1240	1540	Height / Hot water	A	-	960	1240	1540	Height
B	G 1/2” F	1000	1295	Instruments	B	-	580	580	580	Diameter
C	G 1” 1/4" F	595	595	Electric support power	C	G 1/2” F	185	185	185	Outflow
D	G 3/4” F	215	215	Cold water	D	G 1” 1/4 F	185	185	185	Electric support power
E	G 3/4” F	975	1055	Coil inlet	E	-	300	300	300	-
F	G 1/2” F	595	595	Recirculation	F	-	300	300	300	-
G	G 3/4” F	215	215	Coil outlet	G	G 3/4” F	-	-	-	Cold water
H		580	580	Diameter	H	G 3/4” F	-	-	-	Hot water
					I	G 1” F	-	-	-	Coil inlet
					J	G 1” F	-	-	-	Coil outlet
					K	G 1/2” F	-	-	-	Instruments

THERMOCYLINDER		STA 200L	STA 300L	TOP 160L	TOP 200L	TOP 300L
Nominal Capacity	L	200	270	160	200	270
Material	-	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Insulation	mm	50	50	50	50	50
Max. operating pressure	Bar	6	6	6	6	6
Max. temperature	°C	90	90	90	90	90
Max. operating pressure coil	Bar	8	8	8	8	8
Max. temperature coil	°C	90	90	90	90	90
Coil surface area	m²	2.3	2.6	1.9	2.3	2.3
Static losses (EN 12897)	W	59	65	53	59	65
Energy Efficiency Class	-	B	B	B	B	B
Coil power (1)	kW	a) 70 \| b) 43	a) 79 \| b) 49	a) 58 \| b) 36	a) 70 \| b) 43	a) 79 \| b) 49
Power supplied	-	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz
Immersion heater	W	1500	1500	1500	1500	1500
Room temperature limits	°C	-5/40	-5/40	-5/40	-5/40	-5/40
Empty weight	Kg.	51	60	38	48	62
Dimensions (Ø/height)	mm	Ø580/1240	Ø580/1540	Ø580/960	Ø580/1240	Ø580/1540
a) Primary circuit (Tin =90°C; Tout =80°C); Production DHW (Tin=10°C; Tout=55°C) b) Primary circuit (Tin =70°C; Tout =60°C); Production DHW (Tin=10°C; Tout=55°C)
