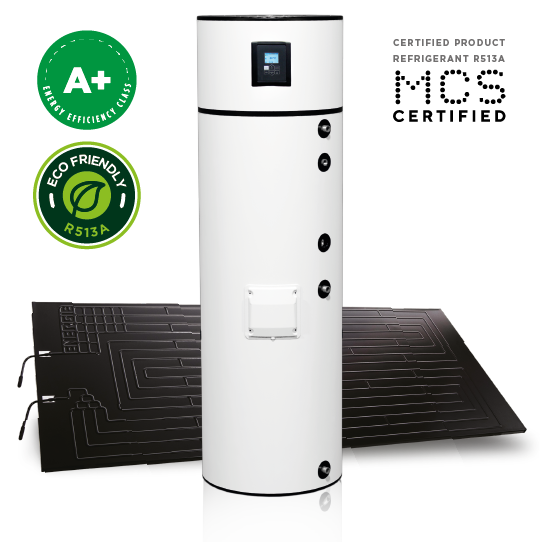

Next generation thermodynamic solar heat pump, specially designed for domestic hot water production.
The ideal solution for apartments or limited spaces, compatible with installation in 60×60 cm cabinets, thanks to the integration of the thermodynamic block on top of the unit, a space-saving solution that simplifies installation.
The ECOTOP is available in capacities from 200 to 300 litres. It comes in a version with 1 thermodynamic solar panel and hot water storage tanks in Stainless steel 444 or Duplex 2205, with or without an additional coil.
The system consists of an indoor unit, the hot water storage tank and an outdoor unit, the thermodynamic solar panel.
Hot water up to 55°C, 24 hours a day, with maximum efficiency.

Ask us for a quote

EFFICIENCY & QUALITY

IN DOMESTIC HOT WATER PRODUCTION

Stainless steel storage tank
Minimum occupied space at home
High level of efficiency and ecology
Quiet operation
Time scheduling with chrono function
Easy installation
Smart photovoltaic function
Anti-legionella function
Controller with software in 6 languages
Optional coil
MCS Certification

THERMODYNAMIC SOLAR PANEL TECHNOLOGY

Anodized aluminium, with solocoat flexible finishing
Easy to transport and install, only 8 kg and 2×0,8 m.
No glass, rubber or fragile materials
No overheating and freezing problems
It can be installed on the roof, wall, garden, etc.
Panel efficiency does not decrease with age or dirt
No need for cleaning and humidity resistance
Estimated lifespan of 25 years
Passed the corrosion test in a salt fog test equivalent to 20 years
Solar Keymark Certification

MAXIMUM RETURN ON INVESTMENT

24 HOURS A DAY / 7 DAYS A WEEK / 365 DAYS A YEAR

SOLAR PERFORMANCE

Tested and certified according to the most rigorous European standards it has achived an extraordinary coefficient of performance of 3,9 according to the EN16147. The testing was carried out without solar irradiance, wind or rain. To enhance the real operating performance even more we advise to instal the thermody- namic solar pane facing South (North on the southern hemisphere), east or west. Vertically or horizontally on a wall, roof, flat roofbut always on a landscape position.

SOLID AND ROBUST

The thermodynamic solar panel is made of anodised aluminium with a special Solokote finishing that ensures it’s robust and longlasting against corrosion, in particular when exposed to saline and/or aggressive environments. This innovative technical feature allows energie to provide a 10 years warranty against corrosion, ensuring peace of mind to the end user.

SIMPLE AND ERGONOMIC

The high efficiency of the hot water cylinder is achieved by using a highdensity polyurethane foam that ensures a low heat loss rate, being able to keep the water heated for several days in a row even if the units is turned off.

SOPHISTICATED

The equipment’s indoor unit has a stainless steel stotage tank, as well as an external condenser. High density injected polyurethane insulation with cathodic protection. The thermodynamic block is equipped with a state-of-the-art compressor, with one of the lowest electrical consumptions on the market.

THERMODYNAMIC SOLAR SYSTEM

WORKING PRINCIPLE

The evaporation of the fluid that runs inside the closed looped circuit happens on the solar panel by capturing the heat from the sun, wind, rain and surrounding air by natural convection. The heated fluid then travels to the compressor, that will compress the fluid increasing its pressure and also it’s temperature. Then it goes to the heat exchanger where where this heat is transferred to the water. After this, an expansion valve will make the pressure and temperature drop to sub-zero values. The fluid travels up to the thermodynamic solar panel and the cycle repeats again.

EQUIPMENT

No ducts and no fans
No energy-consuming defrost cycles
Super efficient low consumption compressor
No need to install support equipment

SOLAR PANEL

Captures heat regardless of weather factors
Primary circuit does not need to dissipate excess heat on hotter day
Easy architectural integration, versatile without visual impact

HIGH LEVELOF EFFICIENCY

DOMESTIC HOT WATER PRODUCTION

Compressor
Electrical resistance
Disinfect
Solar function
Alarme

PHOTOVOLTAIC INTELLIGENT FUNCTION

Take Full advantage of your PV System:
• Sets new standards of smart energy management
• Maximize your PV Solar Panels production and reduce your DHW costs
• Maximize the solar irradiation available by having the thermodynamic solar system working more when there is more sun available
• Get the balance between PV production and consumption with our intelligent controller

With PV Smart Grid Ready, the ENERGIE Solar System absorbs the extra power generated by PV Panels, Wind Energy or Small Hydro storing, what would be lost energy, into the water, enabling you to save even more.

Thermodynamic Solar Panel
Storage Water Heater.
Thermodynamic Block
Photovoltaic Panels
Inverter

NEW APP NOW AVAILABLE FOR ANDROID

Configureoperating modes

Vacation Mode

Consumption history

Time schedule

Temperature control

Anti-legionella cycle

DID YOU KNOW THAT

Qualquer sistema solar termodinâmico no seu interior só possui um elemento mecânico com consumo elétrico. Este elemento é um compressor de baixo consumo super eficiente. Dado que a capacidade de captação de calor do meio ambiente é primariamente assegurada pela radiação solar, torna-se superior a qualquer outro equipamento destinado à mesma finalidade, a poupança é máxima. A manutenção do sistema é praticamente nula e longevidade muito elevada.

TECHNICAL DATA – THERMAL STORAGE TANK			200i	250i	300i	200ix	250ix	300ix
Net weight		Kg.	60	68	71	63	71	74
Volume		L	200	250	300	195	245	295
Water eater		-	Stainless Steel
Cathodic protection		-	Mg Anode (1”1/4)
Hydraulic connections	Water - inlet and outlet	Pol.	3/4”	3/4”	3/4”	3/4”	3/4”	3/4”
	PT Valve		1/2”	1/2”	1/2”	1/2”	1/2”	1/2”
	Recirculation		3/4”	3/4”	3/4”	3/4”	3/4”	3/4”
	Coil \| entrance and exit		-	-	-	1"	1"	1"
Insulation		-	High density polyurethane 50mm
Maximum pressure		Bar	7	7	7	7	7	7
Maximum temperature		°C	80	80	80	80	80	80
Heat loss (EN12897)		kWh/24h	0.99	01.01	1.17	0.99	01.01	1.17
Heat Exchanger Capacity (1)		kW	Not Applicable	Not Applicable	Not Applicable	a)20 ; b)12	a)20 ; b)12	a)20 ; b)12
THERMODYNAMIC SOLAR PANEL
Material		-	Anodized aluminum solarcoat
Dimensions (W x H x D)		mm	2000 x 800 x 20
Weight		Kg.	8
Maximum Working Pressure		Bar	12
Maximum Exposure Temperature		°C	-40 \| 120
THERMODYNAMIC BLOCK
Absorbed power (avg/max)		W	350 \| 600
Thermal power (avg/max)		W	1250 \| 2100
Electric support power		W	1500
Refrigerant fluid / Qt. (2)		-/g	R134a / 1100
Piping material		-	Copper (DHP ISO1337)
Liquid line \| Asp.		Pol.	1/4” \| 3/8”
Power supply		V / Hz	220-240 / Single-phase / 50 or 60 (3)
Fuse (general \| resistance)		A	10 \| 10
PERFORMANCE (4)			250i	250i	300i	200ix	250ix	300ix
Load profile		-	L	XL	XL	L	XL	XL
Coefficient of performance (COP)	Air 14°C	-	3.7	3.8	3.9	3.7	3.8	3.9
Energy efficiency class	Air 14°C	-	A++	A+	A++	A++	A+	A++
Energy efficiency	Air 14°C	-	154	158	162	154	158	162
Annual energy consumption	Air 14°C	KWh/year	664	1060	1037	664	1060	1037
Amount of useful water at 40°C		L	261	349	363	256	344	358
Set point		°C	54	54	54	54	54	54
Interior sound level		dB	47	47	47	47	47	47
(1) – a) Primary Circuit (Te = 90 °C; Ts = 80 °C); Domestic Hot Water Circuit (Te = 10 °C; Ts = 60 °C) \| b) Primary Circuit (Te = 70 °C; Ts = 60 °C); Domestic Hot Water Circuit (Te = 10 °C; Ts = 60 °C) (2) – The fluid quantity must be verified by the installer. In certain cases, it is necessary to adjust the amount of fluid to ensure proper system operation. (3) – The 60 Hz frequency is available only on request. (4) – In accordance with EN 16147, Commission Delegated Regulation (EU) No. 812/2013 and No. 814/2013.
DIMENSIONS mm			250I	250I	300I	200IX	250IX	300IX
A			131	131	102	131	131	102
B			-	-	-	231	231	231
C			-	-	-	690	690	631
D			-	840	840	-	850	850
E			-	-	-	-	-	-
F			905	1205	1060	905	1205	1060
G			1030	1325	1185	1030	1325	1185
H			580	580	650	580	580	650
I			1623	1923	1783	1623	1923	1383
M			800
N			2000
O			20
