| TECHNICAL DATA ACCUMULATOR | DI30-IN | DI50-IN | DI100-IN | DI200-IN | DI500-IN | ||
|---|---|---|---|---|---|---|---|
| Nominal capacity | L | 30 | 50 | 100 | 200 | 500 | |
| Application | - | Wall | Wall | Wall | Vertical | Vertical | |
| Max. operating pressure | bar | 6 | 6 | 6 | 6 | 6 | |
| Max. temperature | °C | 90 | 90 | 90 | 90 | 90 | |
| Insulation | mm | 60 | 60 | 60 | 60 | 60 | |
| Thermal conduction insulation | W/ m.k | 0,025 | 0,025 | 0,025 | 0,025 | 0,025 | |
| Insulation density | Kg3 | 45 | 45 | 45 | 45 | 45 | |
| Static losses | W | 21 | 34 | 35 | 59 | 93 | |
| Energy Efficiency Class | - | A | A | A | B | C | |
| Empty weight | Kg | 10 | 27 | 33 | 52 | 89 | |

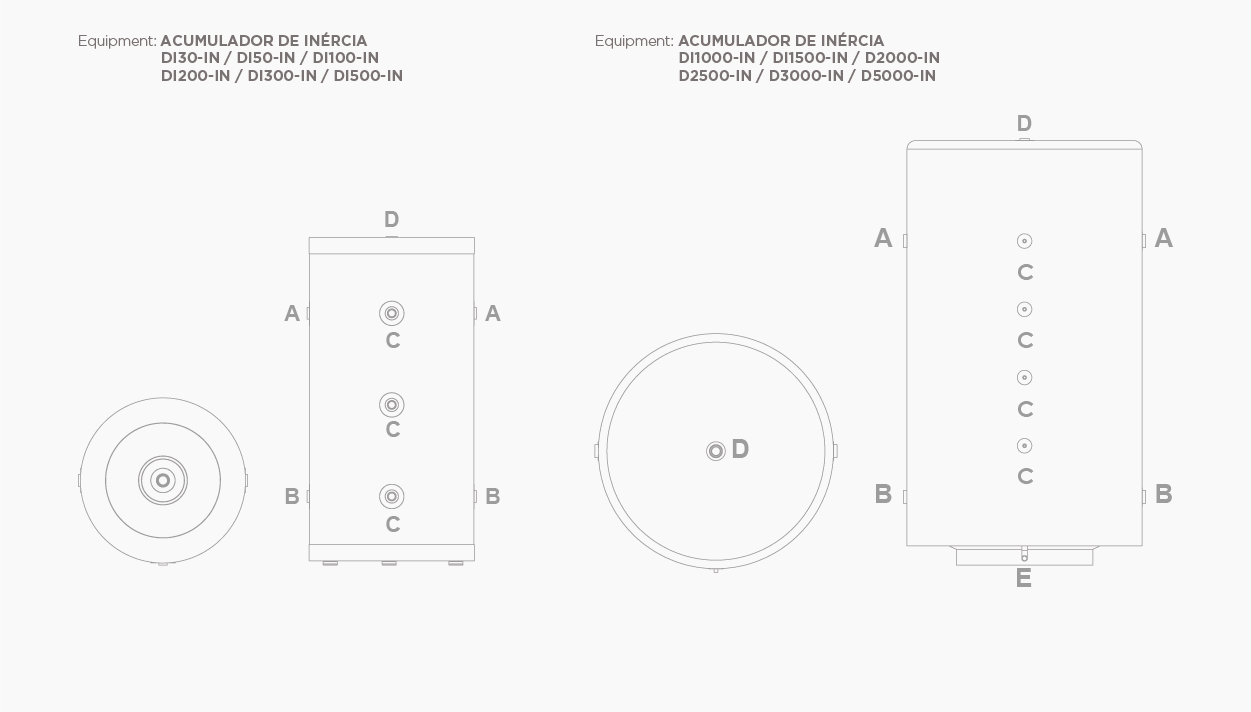

| H (height) | mm | 595 | 650 | 1050 | 1300 | 1950 | |
| Ø (diameter) | mm | 300 | 500 | 500 | 600 | 720 | |
| A, B (connections) | 1”/F | 1”1/4F | 1 ”1/2F | 1” 1/2F | 3”F | ||
| C (probes) | 1/2”F | 1/2”F | 1/2”F | 1/2”F | 1/2”F | ||
| D (top connection) | 1”F | 1” 1/4F | 1” 1/4F | 1 ” 1/4F | 1”1/4F | ||
| E (outflow) | 1”F | - | - | - | - | ||
